Tylko do końca tygodnia Carbide Turning Insert – CNGG120404R-A3 KW10

Opis

Opis:

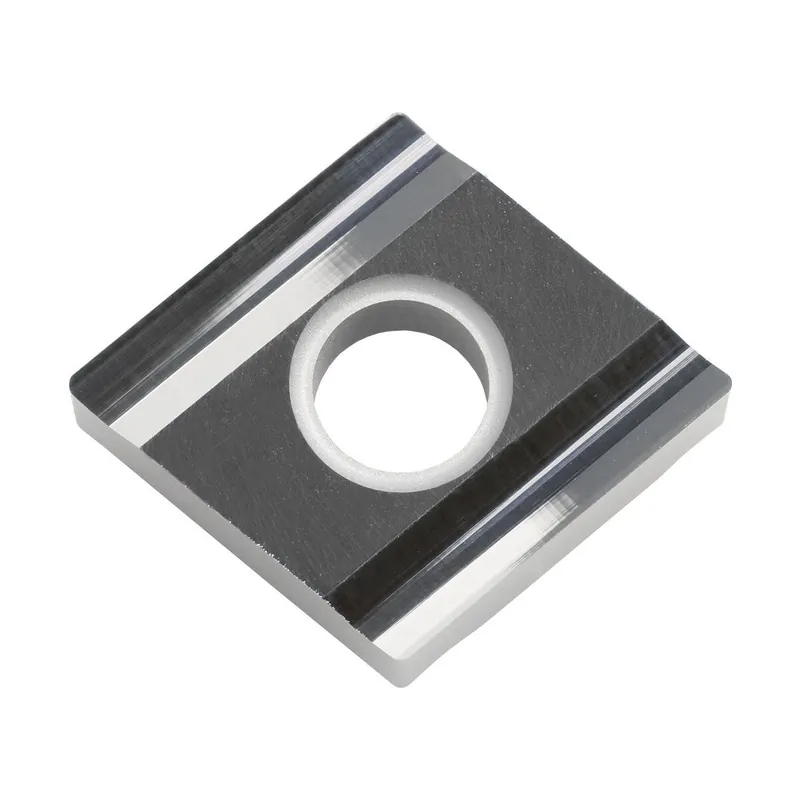

Carbide Turning Insert CNGG120404R-A3 KW10

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 2
Corner radius (RE): 4
S (GTC – Insert thickness): 4.76 mm
IC (GTC – Inscribed circle diameter): 12.7 mm
L (GTC – Cutting edge length): 12.896 mm
EPSR (GTC – Insert included angle): 80 Degree
Size: 1204
Chip breaker: A3
Description: CNGG
TC (GTC – Tolerance class insert): G
Grade: KW10
HAND (GTC – Insert hand): R
