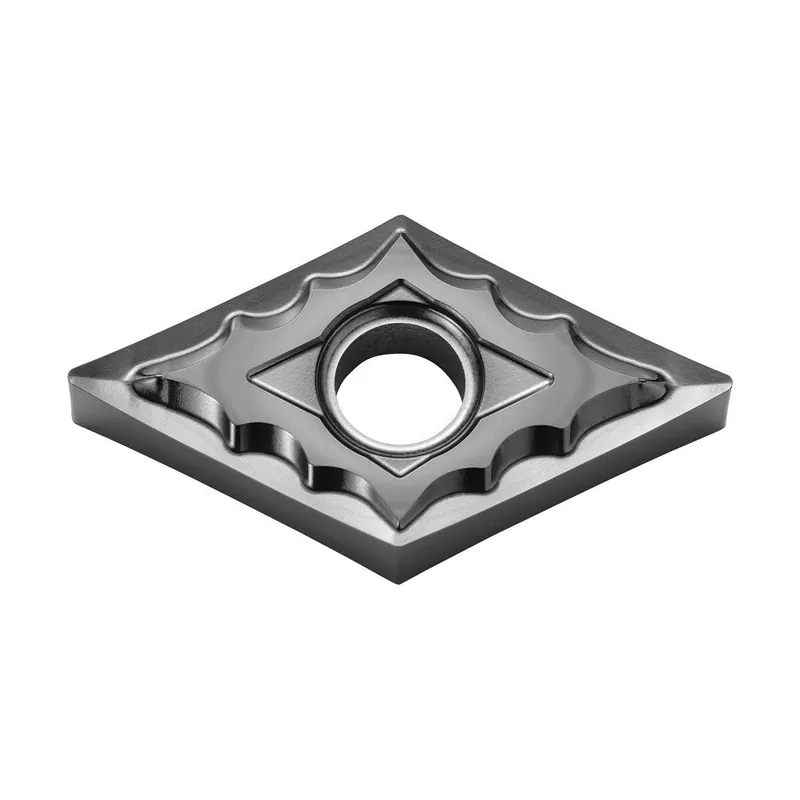

Carbide Turning Insert – DNMG150404AH KW10 Dodaj do koszyka

Opis

Opis:

Carbide Turning Insert DNMG150404AH KW10

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 2
Corner radius (RE): 4
S (GTC – Insert thickness): 4.76 mm
IC (GTC – Inscribed circle diameter): 12.7 mm
L (GTC – Cutting edge length): 15.504 mm
EPSR (GTC – Insert included angle): 55 Degree
Size: 1504
Chip breaker: AH
Description: DNMG
Grade: KW10
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
