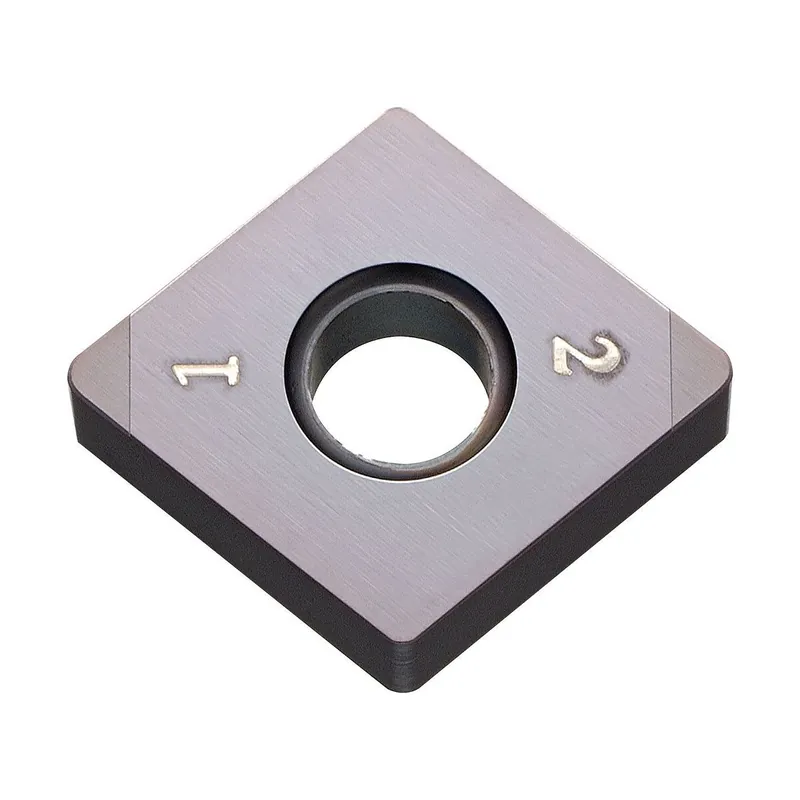

Popularny CBN Turning Insert – CNGA120404S00545MEP KBN05M

Opis

Opis:

CBN Turning Insert CNGA120404S00545MEP KBN05M

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 2
LE (GTC – Cutting edge effective length): 2.6 mm
Corner radius (RE): 4
S (GTC – Insert thickness): 4.76 mm
IC (GTC – Inscribed circle diameter): 12.7 mm
L (GTC – Cutting edge length): 12.896 mm
EPSR (GTC – Insert included angle): 80 Degree
Size: 1204
TCE (GTC – Tipped cutting edge code): B
Description: CNGA
TC (GTC – Tolerance class insert): G
Grade: KBN05M
COATING (GTC – Coating): MEGACOAT CBN
HAND (GTC – Insert hand): N
