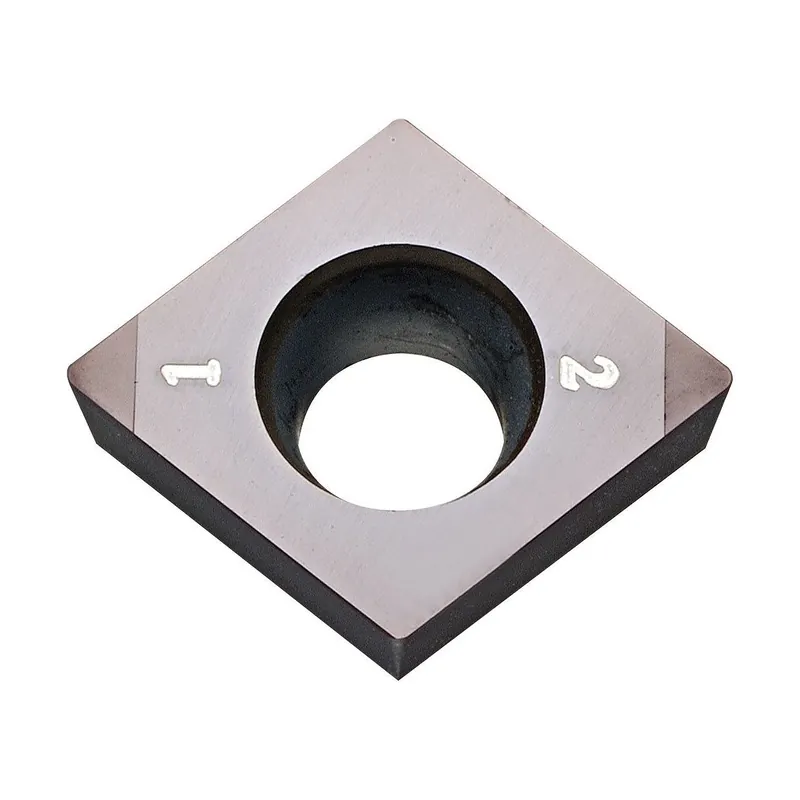

CBN Turning Insert – CCMW060204S01225MES KBN05M Obniżka ceny

Opis

Opis:

CBN Turning Insert CCMW060204S01225MES KBN05M

Cecha szcz.:

RE (GTC – Corner radius): 0.4 mm
LE (GTC – Cutting edge effective length): 1.9 mm
S (GTC – Insert thickness): 2.38 mm
IFS (GTC – Insert mounting style code): 3
Corner radius (RE): 4
IC (GTC – Inscribed circle diameter): 6.35 mm
L (GTC – Cutting edge length): 6.448 mm
AN (GTC – Clearance angle major): 7 Degree
EPSR (GTC – Insert included angle): 80 Degree
Size: 602
TCE (GTC – Tipped cutting edge code): B
Description: CCMW
Grade: KBN05M
TC (GTC – Tolerance class insert): M
COATING (GTC – Coating): MEGACOAT CBN
HAND (GTC – Insert hand): N
