PCD Turning Insert – CCMT060202SE KPD001 Niska cena

Opis

Opis:

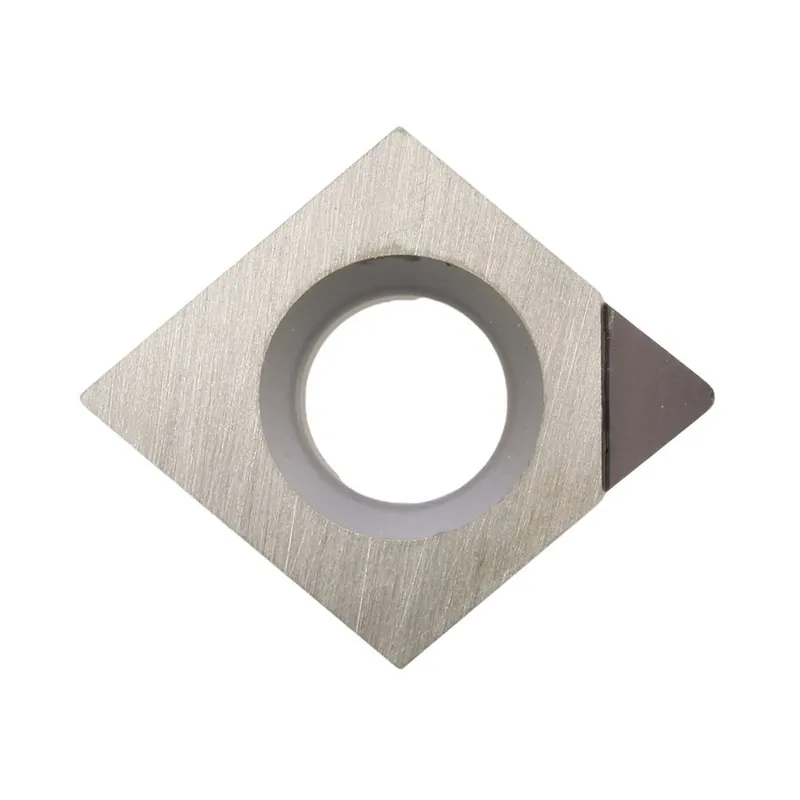

PCD Turning Insert CCMT060202SE KPD001

Cecha szcz.:

RE (GTC – Corner radius): 0.2 mm
Corner radius (RE): 2
LE (GTC – Cutting edge effective length): 2.2 mm
S (GTC – Insert thickness): 2.38 mm
IFS (GTC – Insert mounting style code): 3
IC (GTC – Inscribed circle diameter): 6.35 mm
L (GTC – Cutting edge length): 6.448 mm
AN (GTC – Clearance angle major): 7 Degree
EPSR (GTC – Insert included angle): 80 Degree
Size: 602
TCE (GTC – Tipped cutting edge code): A
Description: CCMT
Grade: KPD001
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
Chip breaker: SE
