Nie przegap PCD Turning Insert – CCGW040102SE KPD001

Opis

Opis:

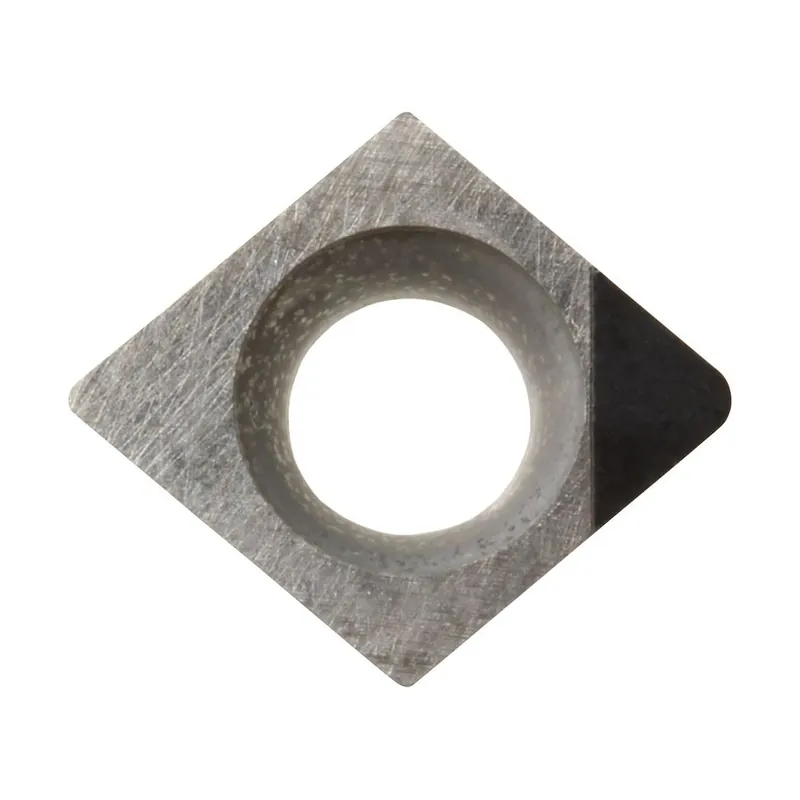

PCD Turning Insert CCGW040102SE KPD001

Cecha szcz.:

RE (GTC – Corner radius): 0.2 mm
LE (GTC – Cutting edge effective length): 1.3 mm
S (GTC – Insert thickness): 1.8 mm
Corner radius (RE): 2
IFS (GTC – Insert mounting style code): 3
IC (GTC – Inscribed circle diameter): 4.3 mm
L (GTC – Cutting edge length): 4.366 mm
AN (GTC – Clearance angle major): 7 Degree
EPSR (GTC – Insert included angle): 80 Degree
Size: 401
TCE (GTC – Tipped cutting edge code): A
Description: CCGW
TC (GTC – Tolerance class insert): G
Grade: KPD001
HAND (GTC – Insert hand): N
Chip breaker: SE
