Zniżka Cermet Threading Insert – TT32R6000 TC60

Opis

Opis:

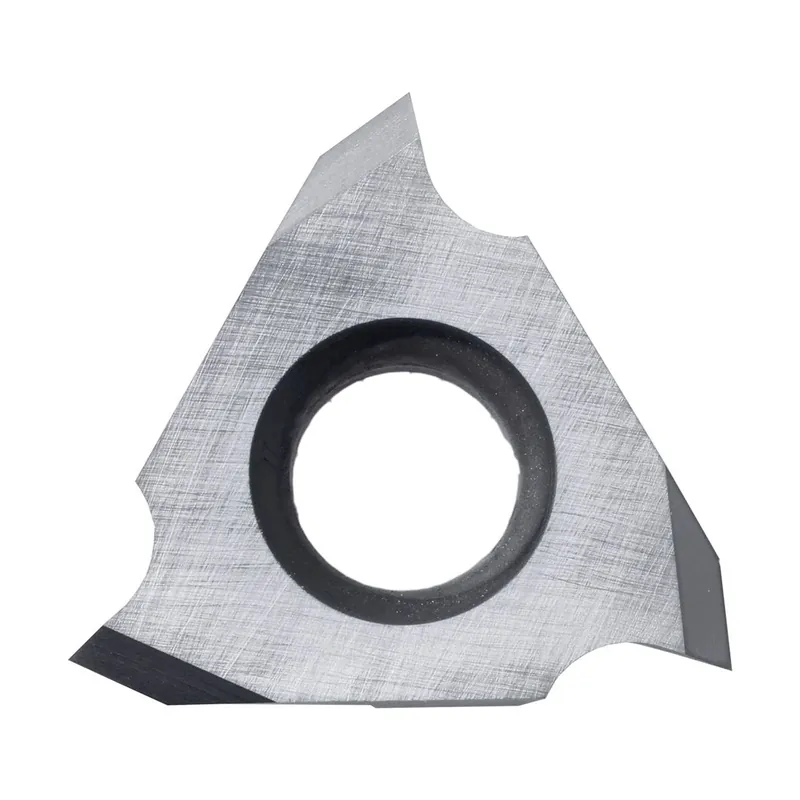

Cermet Threading Insert TT32R6000 TC60

Cecha szcz.:

TPN (GTC – Thread pitch minimum): 0.5 mm
NT (GTC – Tooth count): 1
CEDC (GTC – Flute count): 3
S1 (GTC – Insert thickness total): 3.18 mm
D1 (GTC – Fixing hole diameter): 4.4 mm
IC (GTC – Inscribed circle diameter): 9.525 mm
PAL (GTC – Profile angle left hand): 30 Degree
PAR (GTC – Profile angle right hand): 30 Degree
EPSR (GTC – Insert included angle): 60 Degree
PNA (GTC – Profile included angle): 60 Degree
COATING (GTC – Coating): CERMET
CECC (GTC – Cutting edge condition code): F
TTP (GTC – Thread type): I
THFT (GTC – Thread form type): M
HAND (GTC – Insert hand): R
TCE (GTC – Tipped cutting edge code): S
TPT (GTC – Thread profile type): V
