Wyprzedaż Milling Toolholder – MFH100R-14-6T

Opis

Opis:

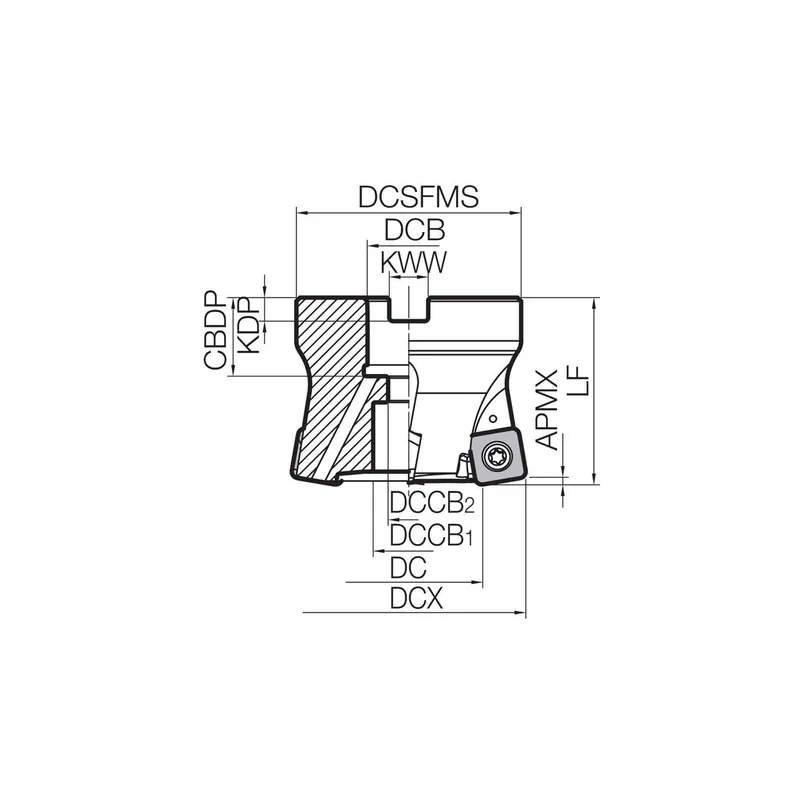

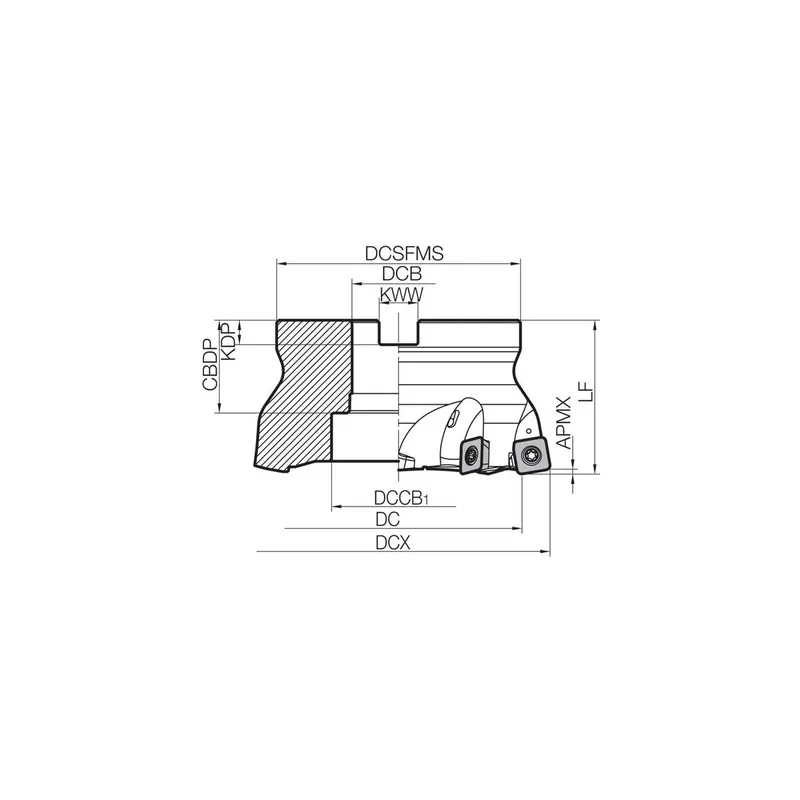

Milling Toolholder MFH100R-14-6T

Cecha szcz.:

RMPX (GTC – Ramping angle maximum): 0.5 Degree
CNSC (GTC – Coolant entry style code): 1
RE (GTC – Corner radius, Pos. A): 2 mm
WT (GTC – Weight of item): 2.4 kg
CXSC (GTC – Coolant exit style code): 3
S (GTC – Insert thickness, Pos. A): 4.58 mm
ZEFF (GTC – Face effective cutting edge count): 6
ZEFP (GTC – Peripheral effective cutting edge count): 6
KAPR (GTC – Tool cutting edge angle): 10 Degree
IC (GTC – Inscribed circle diameter, Pos. A): 10.3 mm
L (GTC – Cutting edge length, Pos. A): 10.3 mm
AN (GTC – Clearance angle major, Pos. A): 16 Degree
DCON (GTC – Connection diameter machine side): 31.75 mm
OAL (GTC – Overall length): 63 mm
DC (GTC – Cutting diameter): 77 mm
EPSR (GTC – Cutting edge angle major, Pos. A): 90 Degree
BD (GTC – Body diameter): 96 mm
DCX (GTC – Cutting diameter maximum): 100 mm
CZCMS (GTC – Connection size code machine side): 1250
RPMX (GTC – Rotational speed maximum): 5600 1/min
HAND (GTC – Cutting direction): R
BMC (GTC – Body material code): S
MIID (GTC – Master insert identification, position A): SOMT100420ER-GM
