Opis
Opis:
- Especially suitable for:
- Industry, construction sites, commercial vehicle and car workshops, agricultural technology, construction machinery
- Bridge, ship, aircraft and railway construction, refineries
- Machinery and plant engineering, maintenance
- Features:
- Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
- With a single-stage planet gear
- High-performance aluminium housing
- Models with transmission ratio 1:4, 1:5.5
- Guaranteed accuracy: Better than +/- 3 % tolerance
- To operate with a suitable torque wrench
- 2 models with maximum load in the range from max. 2000 N·m to 2800 N-m

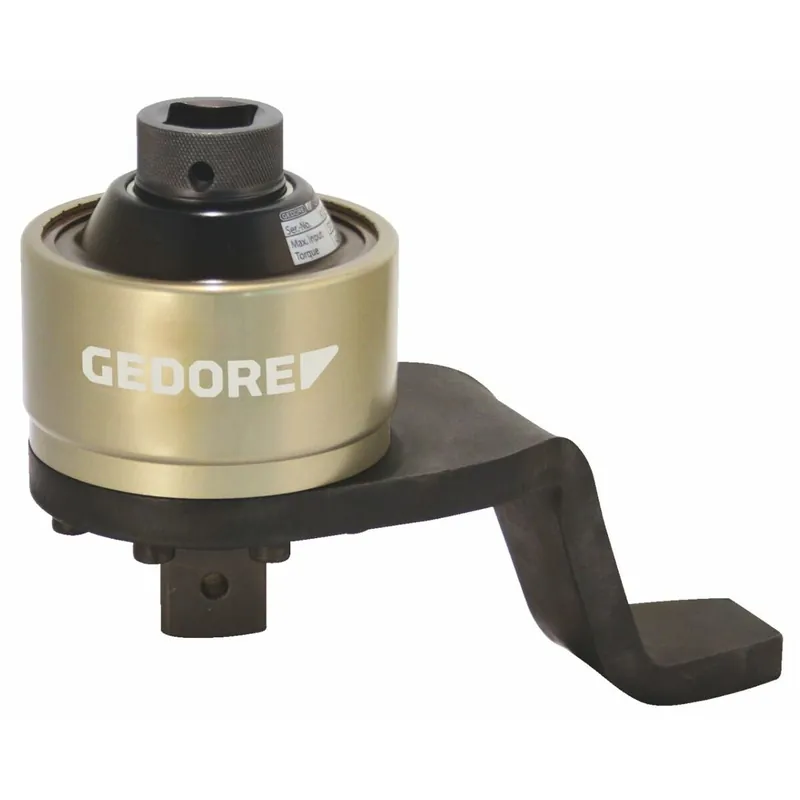

- Model -Z: with cranked reaction arm Z-shaped made of chrome vanadium steel
- Model -L: with straight reaction arm L-shaped, with adjustable reaction square, made of light metal
- Output square with hole for Impact sockets with locking pin and ring
Cecha szcz.:
- 1000 V insulated: no
- Backstop: no
- Distance output square drive – end of reaction arm (max): 150
- Distance square drive – start of reaction arm (min.): 100
- Drive adaptor, square [imperial]: 3/4″
- Drive adaptor, square [metric]: 20,0 mm
- Fuse for square drive: Pin lock
- Fuse Output square: Locking ring and pin
- Input torque (max.) [Nm]: 550 Nm
- Output square [imperial]: 1″
- Output square [metric]: 1″
- Output square [metric]: 25 mm
- Output torque (max.) [Nm]: 2800
- Overload protection: shear drive square
- REACH registration available: no
- Reaction arm mount: screwed over flange
- Reaction arm version: Z-shape, cranked
- Total height without reaction arm: 146
- Total length [mm]: 230 mm
- Total width without reaction arm: 106
- Transmission ratio: 1:5,5
- VDE certified: no
- 1000 V insulated: no
- Backstop: no
- Distance output square drive – end of reaction arm (max): 150
- Distance square drive – start of reaction arm (min.): 100
- Drive adaptor, square [imperial]: 3/4″
- Drive adaptor, square [metric]: 20,0 mm
- Fuse for square drive: Pin lock
- Fuse Output square: Locking ring and pin
- Input torque (max.) [Nm]: 550 Nm
- Output square [imperial]: 1″
- Output square [metric]: 1″
- Output square [metric]: 25 mm
- Output torque (max.) [Nm]: 2800
- Overload protection: shear drive square
- REACH registration available: no
- Reaction arm mount: screwed over flange
- Reaction arm version: Z-shape, cranked
- Total height without reaction arm: 146
- Total length [mm]: 230 mm
- Total width without reaction arm: 106
- Transmission ratio: 1:5,5
- VDE certified: no
