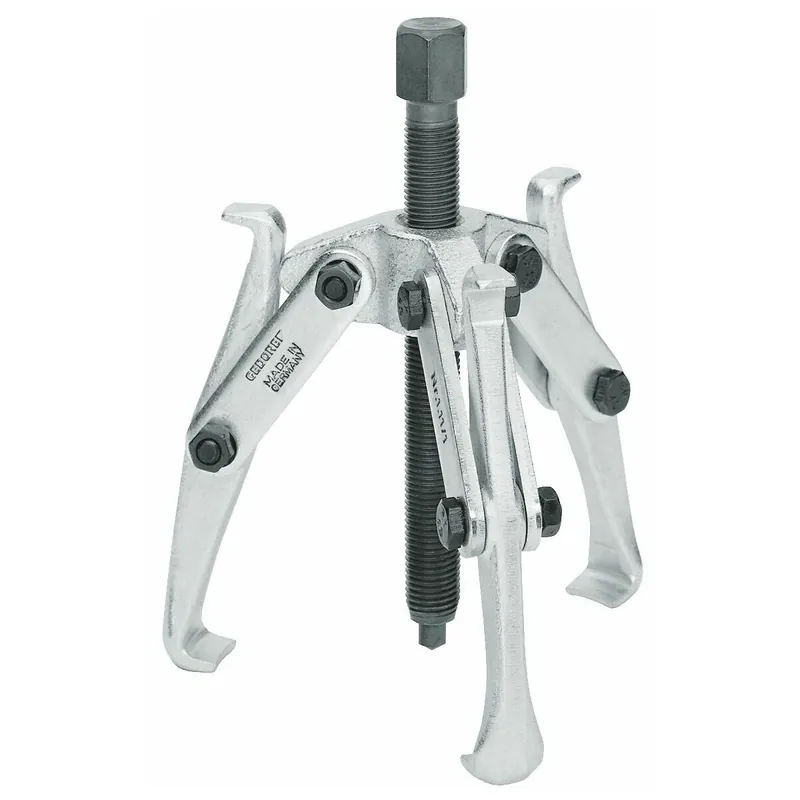

Tylko dziś Puller, 3-arm pattern

Opis

Opis:

• The double leg ends, wide or narrow, grip automatically
• The wide leg ends of the puller 1.11/2, /3, /4 and /5 possess 8 mm slots, so that pulleys or gears may also be pulled off using 8 mm bolts

Cecha szcz.:

• 1000 V insulated: no
• 3D data available: no
• Anti-slip device on spindle available: no
• Can be retrofitted with hydraulic spindle: no
• Clamping bracket available: no
• Clamping width outer pull-off (max.) [mm]: 90 mm
• Hook base width [mm]: 10 mm
• Hook base width at working face c1 [mm]: 17 mm
• Hook brake present: no
• hook end with slot: no
• Hook foot depth usable d2 [mm]: 7 mm
• Hook foot thickness at the point e1 [mm]: 2,0 mm
• Hook parallel displaceable: no
• Hook swivelling: no
• hooks can be used on both sides: yes
• Hydraulic spindle available: no
• Number of arms: 3
• Pulling force (max.) [t]: 3
• Quick release lever available: no
• REACH registration available: no
• Reversible arms available: no
• Screws included: no
• self-acting pressing on: yes
• Spindle anti-slip device: no
• Spindle thread size: M 14×1,5 x 125
• Usable clamping depth b [mm]: 80 mm
• VDE certified: no
• Width across flats [mm: 17 mm
