Tylko do końca tygodnia Milling Toolholder – MSRS90080R-4-4T

Opis

Opis:

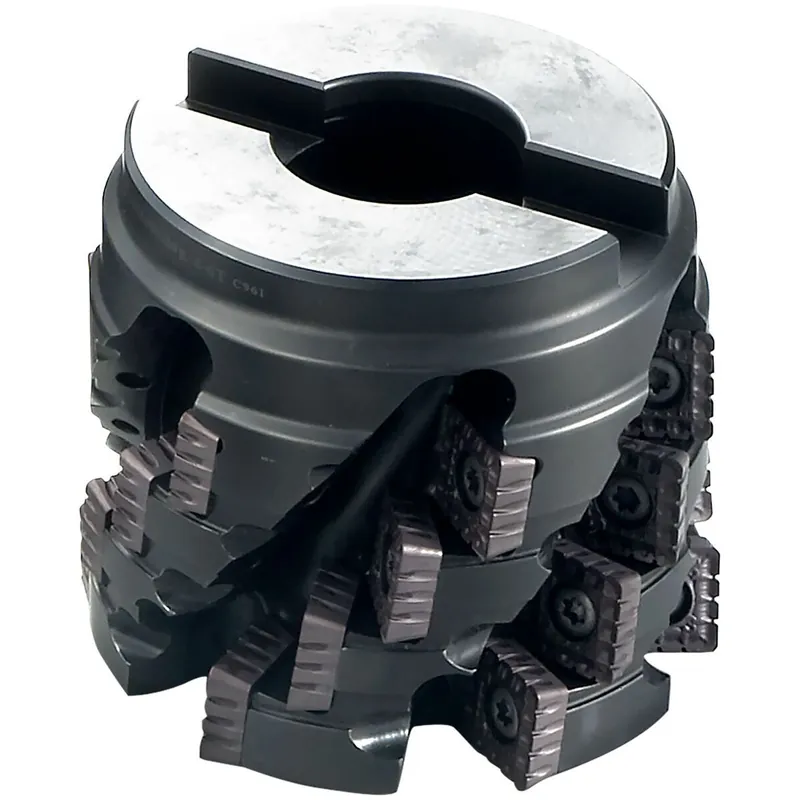

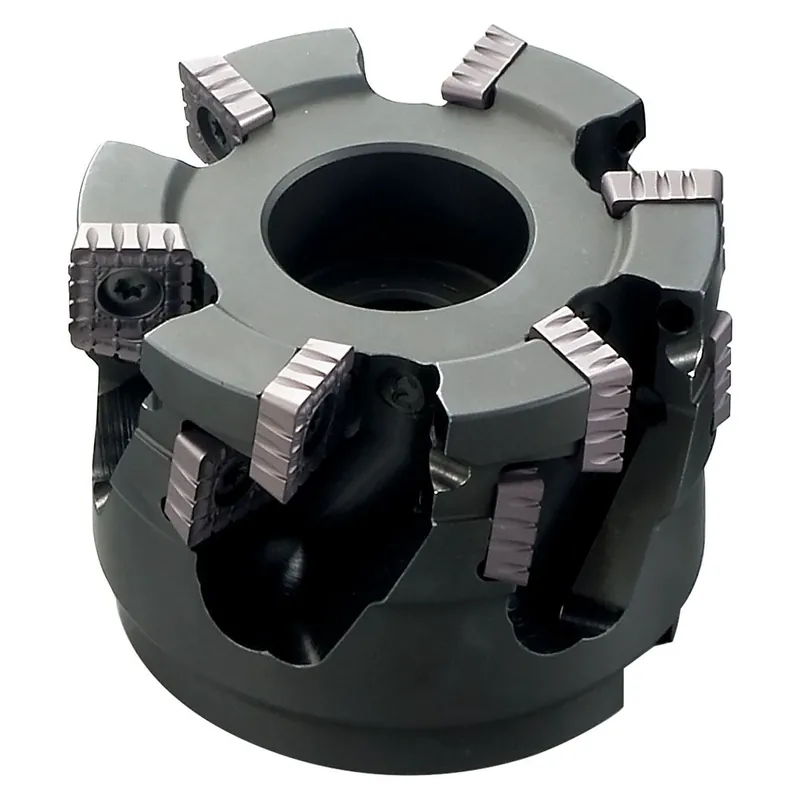

Milling Toolholder MSRS90080R-4-4T

Cecha szcz.:

CNSC (GTC – Coolant entry style code): 0
CXSC (GTC – Coolant exit style code): 0
WT (GTC – Weight of item): 1.5 kg
RE (GTC – Corner radius, Pos. A): 1.6 mm
ZEFF (GTC – Face effective cutting edge count): 4
ZEFP (GTC – Peripheral effective cutting edge count): 4
S (GTC – Insert thickness, Pos. A): 6.35 mm
AN (GTC – Clearance angle major, Pos. A): 11 Degree
IC (GTC – Inscribed circle diameter, Pos. A): 18.34 mm
L (GTC – Cutting edge length, Pos. A): 18.34 mm
DCON (GTC – Connection diameter machine side): 31.75 mm
DC (GTC – Cutting diameter): 80 mm
OAL (GTC – Overall length): 85 mm
EPSR (GTC – Cutting edge angle major, Pos. A): 90 Degree
CZCMS (GTC – Connection size code machine side): 1250
HAND (GTC – Cutting direction): R
BMC (GTC – Body material code): S
MIID (GTC – Master insert identification, position B): SPMT180616EN-NB4
