Tylko do końca tygodnia 827 B 33 PLATE FOR SINGLE MEAS 130 x 130 mm SERRATED

Opis

Wykonanie:

• Plate for single measurement
• Hardened and lapped
• Reversible
• Large measuring surface with longitudinal ribbing
• Both sides face lapped

Opis:

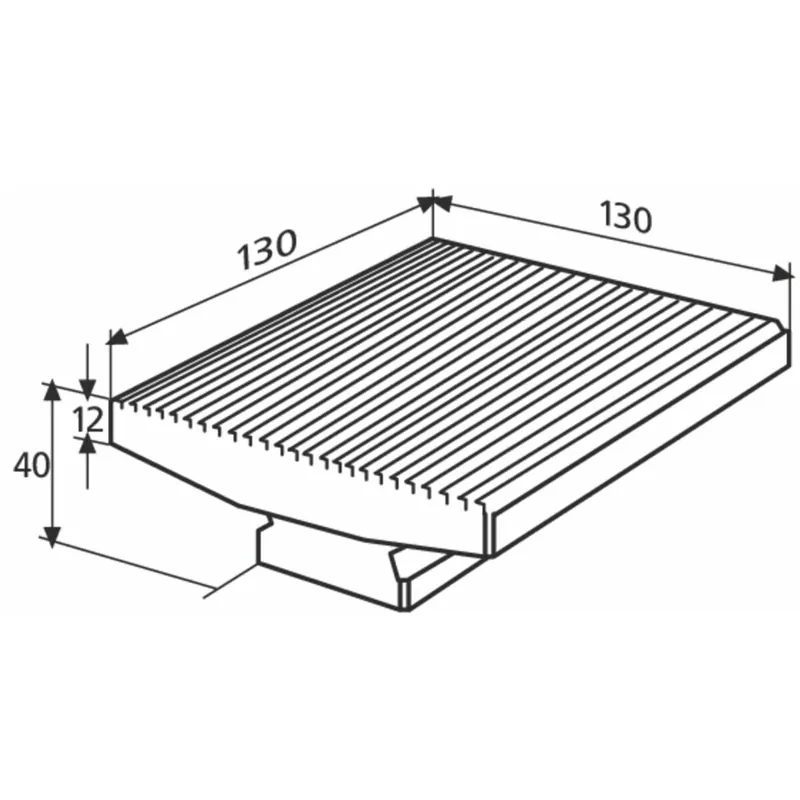

827 b 33 Measuring stage plate (130 x 130 mm)

• For single measurement
• Hardened and lapped
• Rotatable
• Large measuring surface longitudinally fluted
• Both sides flattened

Cecha szcz.:

• Calibration type: Uncalibrated
• Product name: Measuring table top
• Product group name: Measuring stages, measuring stands, concentricity testers
• Product group name: MarStand
• Product type: 827 b 33
• Table surface (A x B) mm: 130 x 130
• Product weight: 2.50 kg
• Flatness deviation in µm: 1 µm
