Taniej Carbide Grooving Insert – TKF12R050-NB KW10

Opis

Opis:

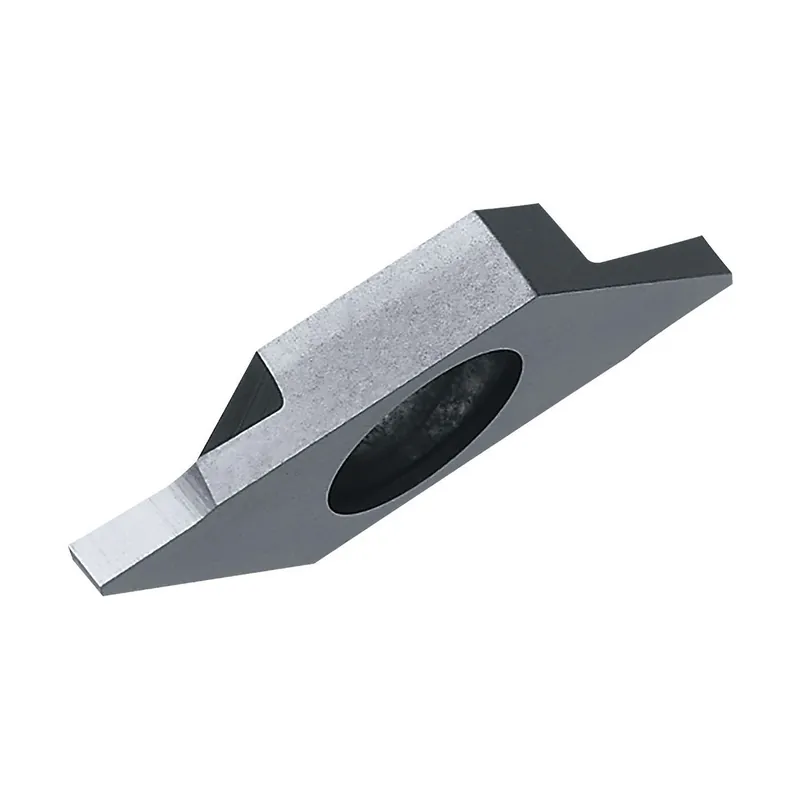

Carbide Grooving Insert TKF12R050-NB KW10

Cecha szcz.:

ANR (GTC – Clearance angle flank right hand): 0 Degree
WT (GTC – Weight of item): 0.004 kg
CW (GTC – Cutting width): 0.5 mm
PFS (GTC – Profile form): 1
CEDC (GTC – Flute count): 2
ANL (GTC – Clearance angle flank left hand): 5 Degree
AN (GTC – Clearance angle major): 7 Degree
S (GTC – Insert thickness): 8.3 mm
S1 (GTC – Insert thickness total): 8.7 mm
INSL (GTC – Insert length): 21.5 mm
Grooving width: 0,50
CECC (GTC – Cutting edge condition code): F
Grade: KW10
HAND (GTC – Insert hand): R
TCE (GTC – Tipped cutting edge code): S
Description: TKF
