Szybka wysyłka Carbide Turning Insert – DNMG110408GS CA510

Opis

Opis:

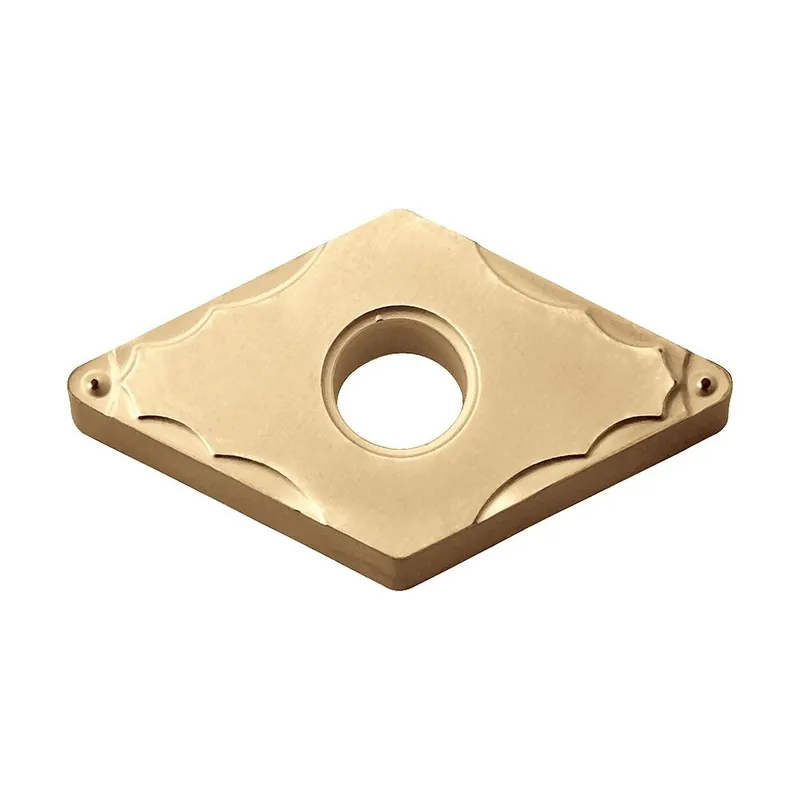

Carbide Turning Insert DNMG110408GS CA510

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.8 mm
IFS (GTC – Insert mounting style code): 2
S (GTC – Insert thickness): 4.76 mm
Corner radius (RE): 8
IC (GTC – Inscribed circle diameter): 9.525 mm
L (GTC – Cutting edge length): 11.628 mm
EPSR (GTC – Insert included angle): 55 Degree
Size: 1104
Grade: CA510
COATING (GTC – Coating): CVD Coated Carbide
Description: DNMG
Chip breaker: GS
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
