Opis
Opis:

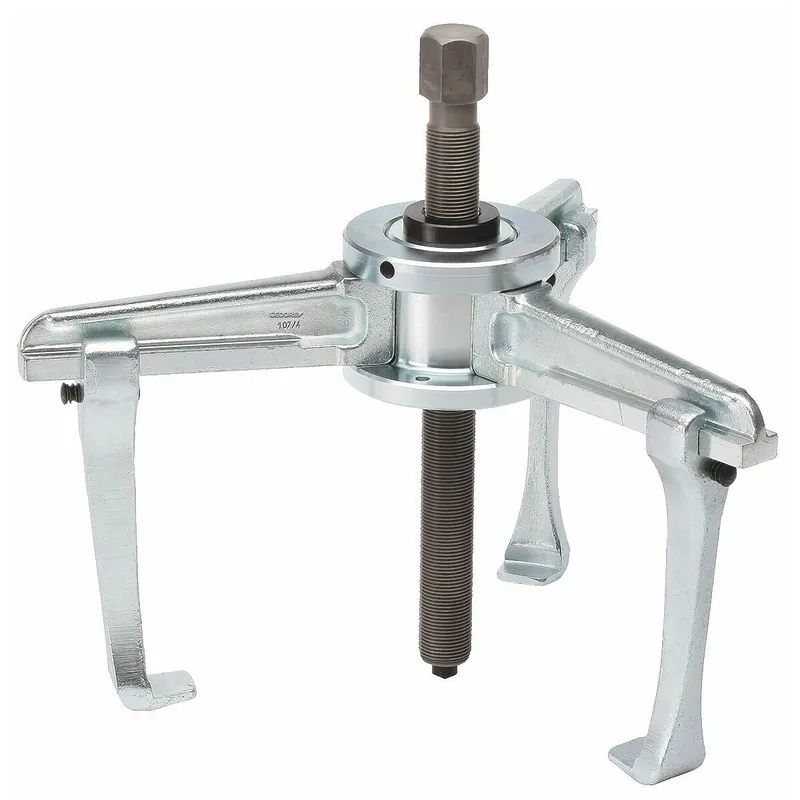

- It is also suitable for removing heavy, multistage V-belt pulley wheels, flywheels, gear wheels, etc.
- Pins are used to lock the arms at 120 degrees to each other on the hub
- Rigid legs forged from one piece
- Leg brake – prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- By reversing the legs, this tool can be used as an internal or external puller
- Upgradeable with hydraulic spindle (see table)
- This puller may also be used with the hydraulic aid no. 1.50 without requiring any reduction bushing
- On request, this puller is also available with further legs and extendable up to 6 arms
- Crosspiece can be combined with other spindle/hook designs and lengths from the GEDORE puller construction kit
Cecha szcz.:
- 1000 V insulated: no
- 3D data available: no
- Anti-slip device on spindle available: no
- Can be retrofitted with hydraulic spindle: no
- Clamping bracket available: no
- Clamping width inner pull-off a2 (min.) [mm]: 270 mm
- Clamping width inside pull-off a2 (max.) [mm]: 530 mm
- Clamping width outer pull-off (max.) [mm]: 450 mm
- Clamping width outside pull-off (min.) [mm]: 150 mm
- Hook base width at working face c1 [mm]: 36 mm
- Hook brake present: no
- Hook foot depth usable d2 [mm]: 28 mm
- Hook foot thickness at the point e1 [mm]: 6,5 mm
- Hook parallel displaceable: no
- Hydraulic spindle available: no
- Hydraulic spindle optional: 1.06/HSP3
- Number of arms: 3
- Pulling force (max.) [t]: 10
- Quick release lever available: no
- REACH registration available: no
- Reversible arms available: no
- Scale graduation available: no
- Screws included: no
- Spindle anti-slip device: no
- Spindle thread size: G 1″ x 360
- Total length [mm]: 137 mm
- Type of use: internal_and_external_pull-off
- Usable clamping depth b [mm]: 200 mm
- VDE certified: no
- Width across flats [mm: 36 mm
