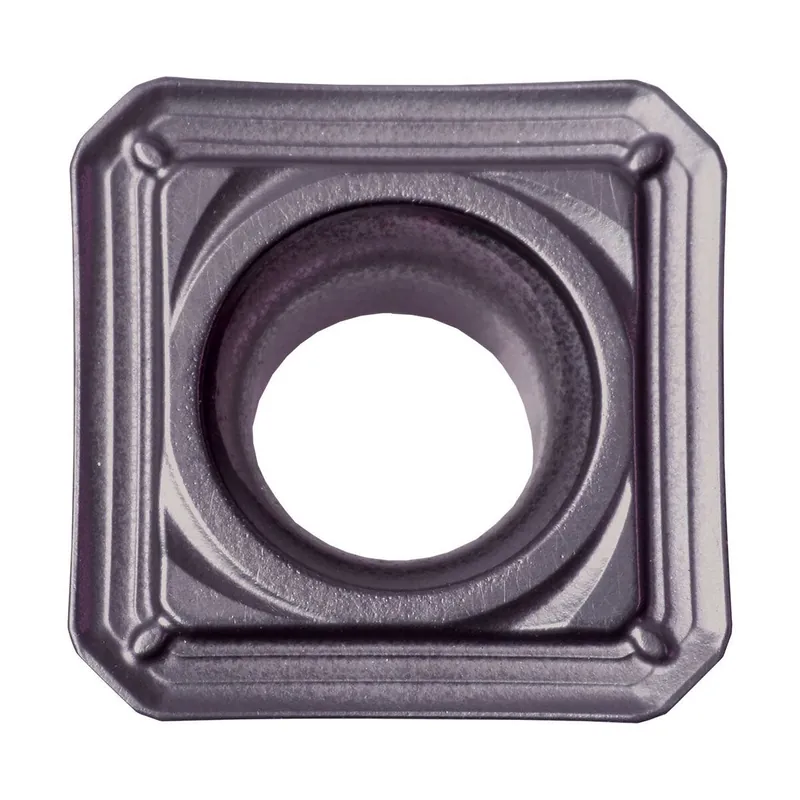

Rabat Carbide Milling Insert – SPKR1203EDER-S PR1225

Opis

Opis:

Carbide Milling Insert SPKR1203EDER-S PR1225

Cecha szcz.:

IFS (GTC – Insert mounting style code): 1
BS (GTC – Wiper edge length): 2 mm
S (GTC – Insert thickness): 3.18 mm
AN (GTC – Clearance angle major): 11 Degree
IC (GTC – Inscribed circle diameter): 12.7 mm
L (GTC – Cutting edge length): 12.7 mm
AS (GTC – Clearance angle wiper edge): 15 Degree
KRINS (GTC – Cutting edge angle major): 75 Degree
EPSR (GTC – Insert included angle): 90 Degree
Size: 1203
TC (GTC – Tolerance class insert): K
Grade: PR1225
HAND (GTC – Insert hand): R
Chip breaker: S
CBMD (GTC – Chip breaker manufacturers designation): SM
Description: SPKR
