Puller set with 9 legs 130×100/200/250 mm Szybka dostawa

Opis

Opis:

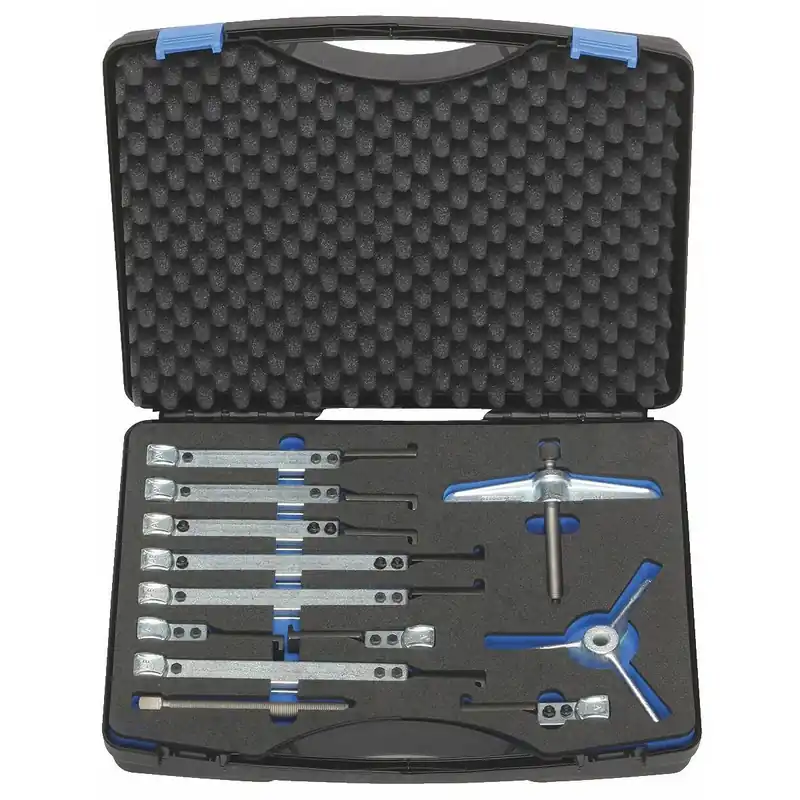

• Contents: 1 spindle, 1 cross-beam each 2- and 3-arm pattern and 9 slim pulling legs in 3 lengths
• 1.07/K-2 insert with nubs on both sides

Cecha szcz.:

• 1000 V insulated: no
• 3D data available: no
• Anti-slip device on spindle available: no
• Can be retrofitted with hydraulic spindle: no
• Clamping bracket available: no
• Clamping width outer pull-off (max.) [mm]: 130 mm
• Design: With plastic case
• Hook base width at working face c1 [mm]: 27 mm
• Hook brake present: no
• Hook foot depth usable d2 [mm]: 7,5 mm
• Hook foot thickness at the point e1 [mm]: 3,7 mm
• Hook parallel displaceable: no
• Hook swivelling: no
• Hydraulic spindle available: no
• Pulling force (max.) [t]: 2,5
• Quick release lever available: no
• REACH registration available: no
• Reversible arms available: no
• Scale graduation available: no
• Screws included: no
• Spindle anti-slip device: no
• Spindle tip exchangeable: no
• Usable clamping depth: 100 / 200 / 250 mm
• VDE certified: no
• Width across flats [mm: 17 mm
