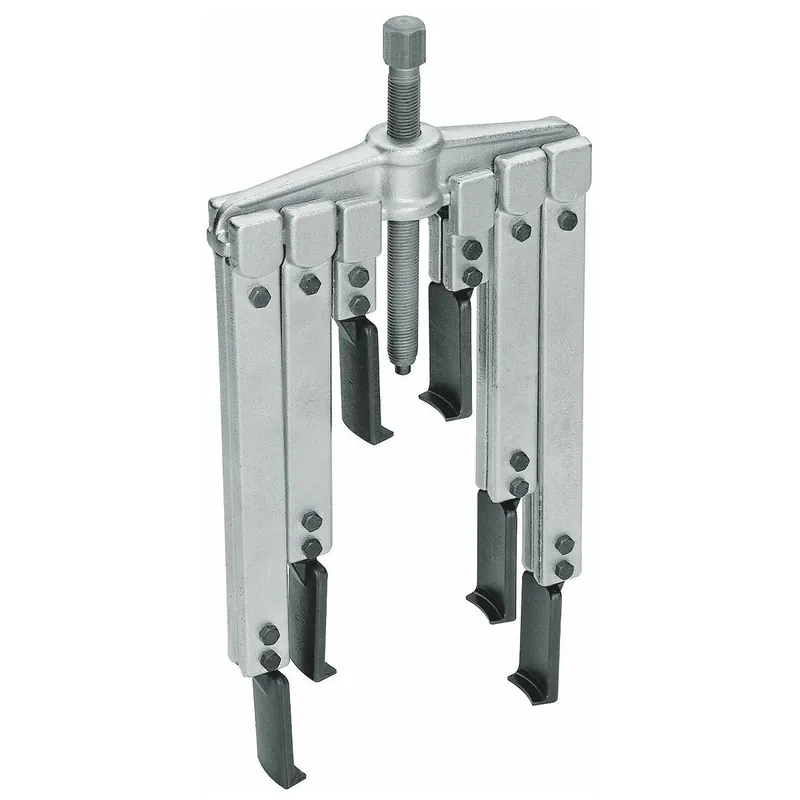

Puller set with 6 legs 200×150/220/300 mm Oferta czasowa

Opis

Opis:

• Particularly suitable for barely accessible places
• Particularly suitable for hard-to-reach areas

Cecha szcz.:

• 1000 V insulated: no
• 3D data available: no
• Anti-slip device on spindle available: no
• Can be retrofitted with hydraulic spindle: no
• Clamping bracket available: no
• Clamping width outer pull-off (max.) [mm]: 260 mm
• Hook base width at working face c1 [mm]: 40 mm
• Hook brake present: no
• Hook foot depth usable d2 [mm]: 7 mm
• Hook foot thickness at the point e1 [mm]: 5,0 mm
• Hook parallel displaceable: no
• Hook swivelling: no
• Hydraulic spindle available: no
• Hydraulic spindle optional: 1.06/HSP1
• Pulling force (max.) [t]: 5,0
• Quick release lever available: no
• REACH registration available: no
• Reversible arms available: no
• Scale graduation available: no
• Screws included: no
• Spindle anti-slip device: no
• Spindle thread size: G 1/2 x 210
• Spindle tip exchangeable: no
• Total hook foot depth [mm]: 15 mm
• Usable clamping depth: 150 / 220 / 300
• VDE certified: no
• Width across flats [mm: 22 mm
