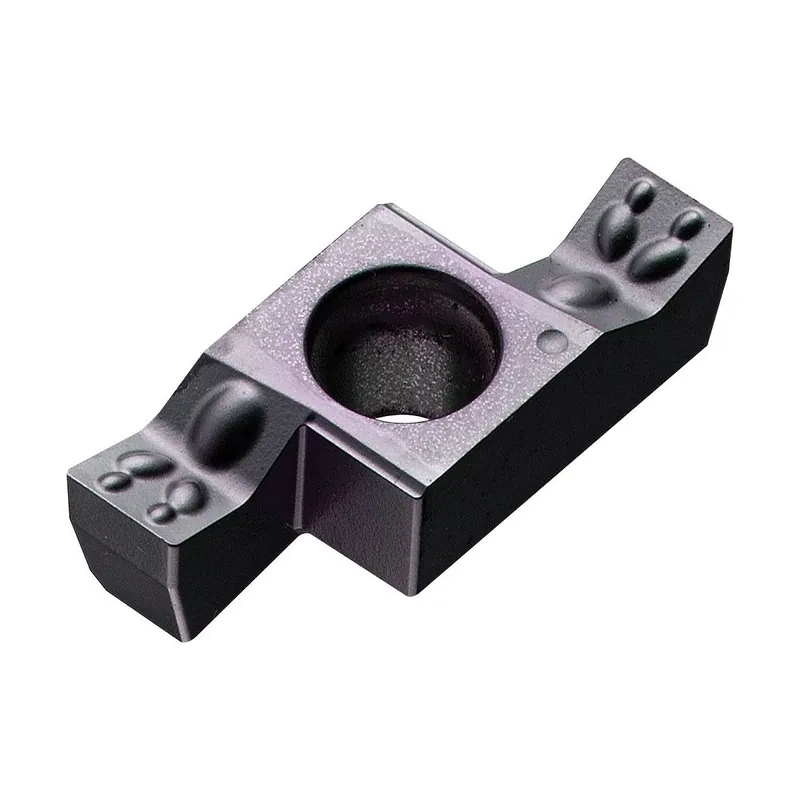

Promocja Carbide Grooving Insert – GER300-020CM PR1225

Opis

Opis:

Carbide Grooving Insert GER300-020CM PR1225

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
WT (GTC – Weight of item): 0.002 kg
REL (GTC – Corner radius left hand): 0.2 mm
RER (GTC – Corner radius right hand): 0.2 mm
PFS (GTC – Profile form): 1
ANR (GTC – Clearance angle flank right hand): 2 Degree
ANL (GTC – Clearance angle flank left hand): 2 Degree
CEDC (GTC – Flute count): 2
CW (GTC – Cutting width): 3 mm
S (GTC – Insert thickness): 3.9 mm
S1 (GTC – Insert thickness total): 4.05 mm
INSL (GTC – Insert length): 11.48 mm
Grooving width: 3,00
CBMD (GTC – Chip breaker manufacturers designation): CM
CECC (GTC – Cutting edge condition code): E
Description: GER
COATING (GTC – Coating): MEGACOAT
Grade: PR1225
HAND (GTC – Insert hand): R
TCE (GTC – Tipped cutting edge code): S
