Popularny Cermet Threading Insert – 11IR60005 TC60

Opis

Opis:

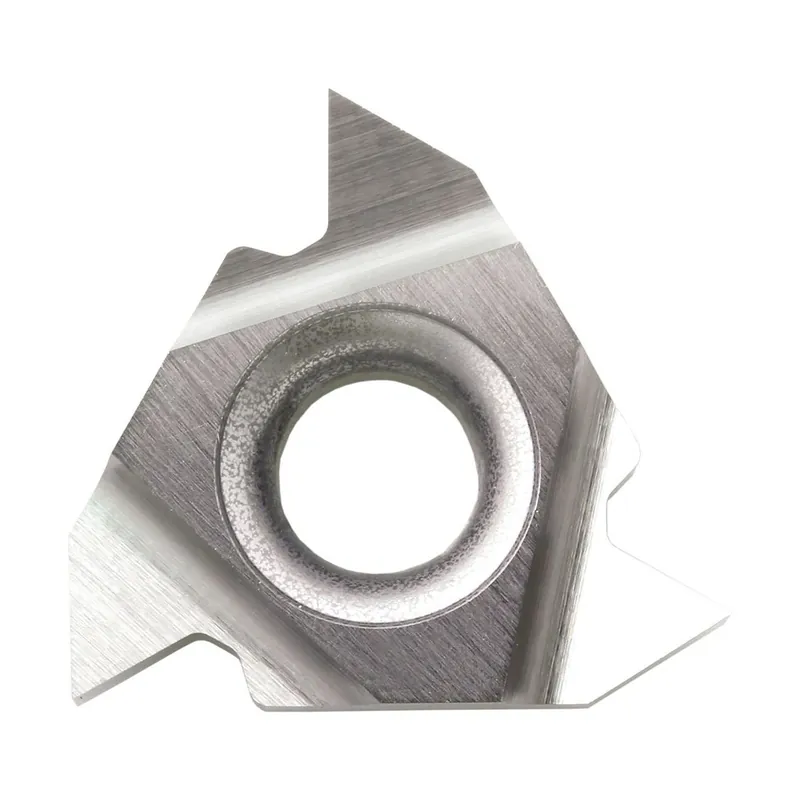

Cermet Threading Insert 11IR60005 TC60

Cecha szcz.:

BLD (DIN4000 – Tool style code): 8
A1 (DIN4000 – Profile form): 8
A5 (DIN4000 – Thread form type): M
A61 (DIN4000 – Thread pitch minimum): 0.75 mm
A62 (DIN4000 – Thread pitch maximum): 1.5 mm
B5 (DIN4000 – Profile included angle): 60 Degree
B6 (DIN4000 – Profile angle right hand): 30 Degree
B7 (DIN4000 – Profile angle left hand): 30 Degree
C8 (DIN4000 – Spot radius): 0.05 mm
D7 (DIN4000 – Insert rake angle): 15 Degree
E41 (DIN4000 – Cutting edge condition code): E
E7 (DIN4000 – Insert hand): R
F1 (DIN4000 – Thread type): I
F2 (DIN4000 – Flute count): 3
F3 (DIN4000 – Tooth count): 1
F4 (DIN4000 – Thread profile type): T
G3 (DIN4000 – Inscribed circle diameter): 6.36 mm
G4 (DIN4000 – Insert thickness total): 3.18 mm
G5 (DIN4000 – Insert mounting style code): 4
G6 (DIN4000 – Fixing hole diameter): 3 mm
G7 (DIN4000 – Insert thickness): 3.03 mm
G8 (DIN4000 – Insert included angle): 60 Degree
H5 (DIN4000 – Coating): CERMET
H6 (DIN4000 – Tipped cutting edge code): S
