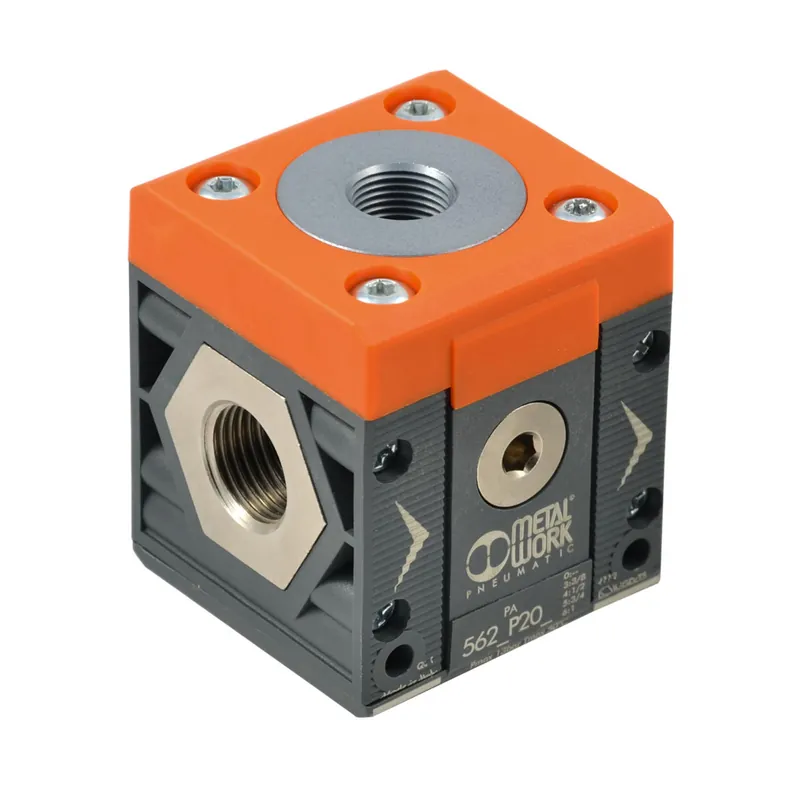

Popularny Air take-off 4-way »SYNTESI«, s.1, G 1/4, outl. 1x G 1/4, 3x G1/8

Opis

Opis:

Air take-off 4-way »SYNTESI«, size1, G 1/4, outlets 1 x G 1/4, 3 x G 1/8, p1 = max. 15 bar, T = -10 … 50 °C

Cecha szcz.:

• A: 42.0 mm
• B: 58.0 mm
• F: 32.2 mm
• A1: – mm
• BG: 1
• Series: Synthesis
• departure: 1 x G 1/4, 3 x G 1/8
• Medium: Compressed air or other neutral gases
• Casing: technopolymer
• Rate of flow: 500 – 2000 l/min
• Connection outlet: G 1/4
• Connection inlet: G 1/4
• Max. inlet pressure: 15 bar
• flow measurement: P₂ = 6.3 bar and pressure drop Δ_p = 1 bar
• Maximum temperature range: 50 °C
• Temperature range min.: -10 °C
