Okazja Milling Toolholder – MFH40-W32-10-3T

Opis

Opis:

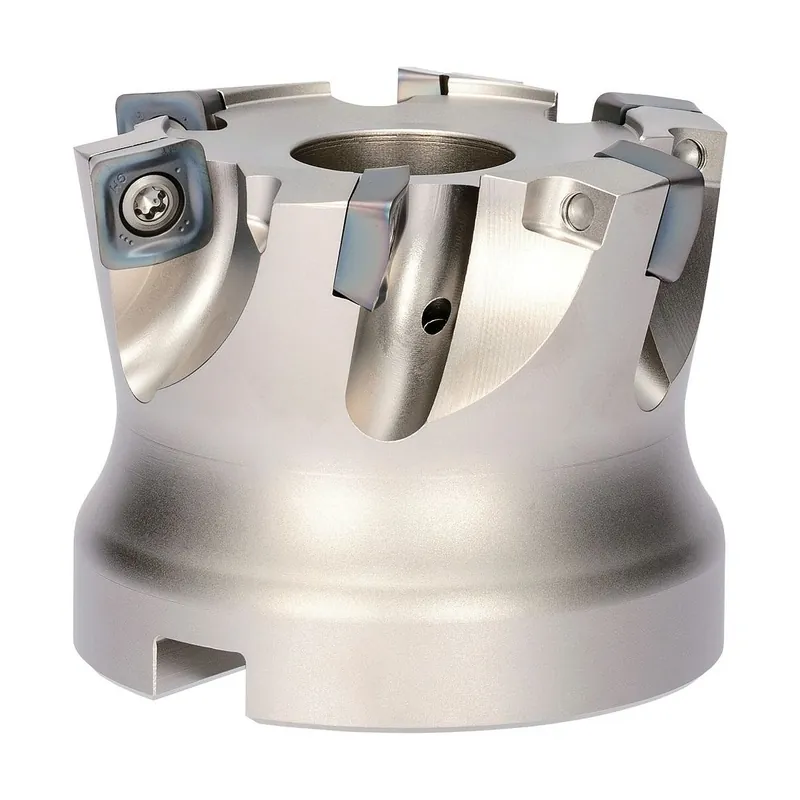

Milling Toolholder MFH40-W32-10-3T

Cecha szcz.:

WT (GTC – Weight of item): 0.879 kg
CNSC (GTC – Coolant entry style code): 1
APMX (GTC – Depth of cut maximum): 1.5 mm
RE (GTC – Corner radius, Pos. A): 2 mm
Number of inserts: 3
CXSC (GTC – Coolant exit style code): 3
RMPX (GTC – Ramping angle maximum): 3 Degree
ZEFF (GTC – Face effective cutting edge count): 3
ZEFP (GTC – Peripheral effective cutting edge count): 3
S (GTC – Insert thickness, Pos. A): 4.58 mm
Cutting angle: 10
Insert size: 10
KAPR (GTC – Tool cutting edge angle): 10 Degree
IC (GTC – Inscribed circle diameter, Pos. A): 10.3 mm
L (GTC – Cutting edge length, Pos. A): 10.3 mm
AN (GTC – Clearance angle major, Pos. A): 16 Degree
LU (GTC – Usable length): 20 mm
Shank diameter (DCON): 32
DCON (GTC – Connection diameter machine side): 32 mm
BD (GTC – Body diameter): 36 mm
DC (GTC – Cutting diameter): 40 mm
OHX (GTC – Protruding length): 55 mm
LS (GTC – Shank length): 62 mm
EPSR (GTC – Cutting edge angle major, Pos. A): 90 Degree
Total length (OAL): 112
OAL (GTC – Overall length): 112 mm
CZCMS (GTC – Connection size code machine side): 320
RPMX (GTC – Rotational speed maximum): 11500 1/min
Recess (LDN): 50,0
TCDCON (GTC – ISO-tolerance class connection bore diameter machine side): h6
Diameter (DC): ø40
HAND (GTC – Cutting direction): R
BMC (GTC – Body material code): S
MIID (GTC – Master insert identification, position A): SOMT100420ER-GM
Shank type: Weldon
Internal coolant: Yes
