Okazja Carbide Turning Insert – DCMT11T304XP CA510

Opis

Opis:

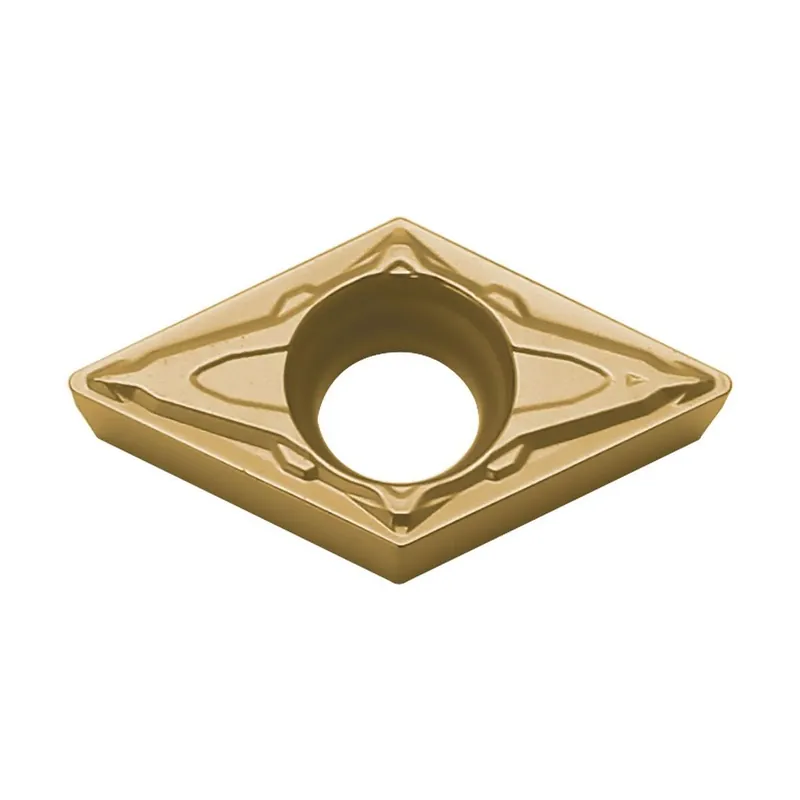

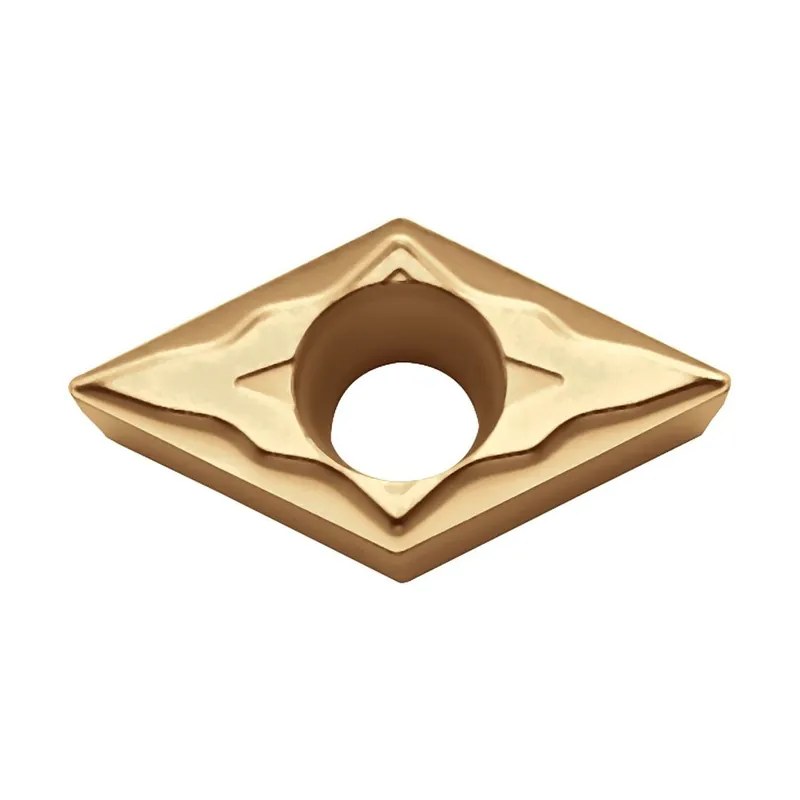

Carbide Turning Insert DCMT11T304XP CA510

Cecha szcz.:

RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 3
S (GTC – Insert thickness): 3.97 mm
Corner radius (RE): 4
AN (GTC – Clearance angle major): 7 Degree
IC (GTC – Inscribed circle diameter): 9.525 mm
L (GTC – Cutting edge length): 11.628 mm
EPSR (GTC – Insert included angle): 55 Degree
Size: 11T3
Grade: CA510
COATING (GTC – Coating): CVD Coated Carbide
Description: DCMT
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
Chip breaker: XP
