Opis
Wykonanie:
- Operating and display units with satin chrome finish
- Rigid, lightweight tubular construction
- Stainless spindle is hardened throughout and ground
- Locking device
- Carbide tipped spherical measuring faces
- Interchangeable extension 44 Cv contains cylindrical gage rods that are spring mounted in protective sleeves for the extension of the measuring range
- Protection sleeves have a satin chrome finish
Opis:
Inside micrometer Micromar 44 Cm
- For measuring large inside diameters
- DIN 863-4 measuring range: 100 – 125 mm
- cale graduation_mm: 0.01 mm

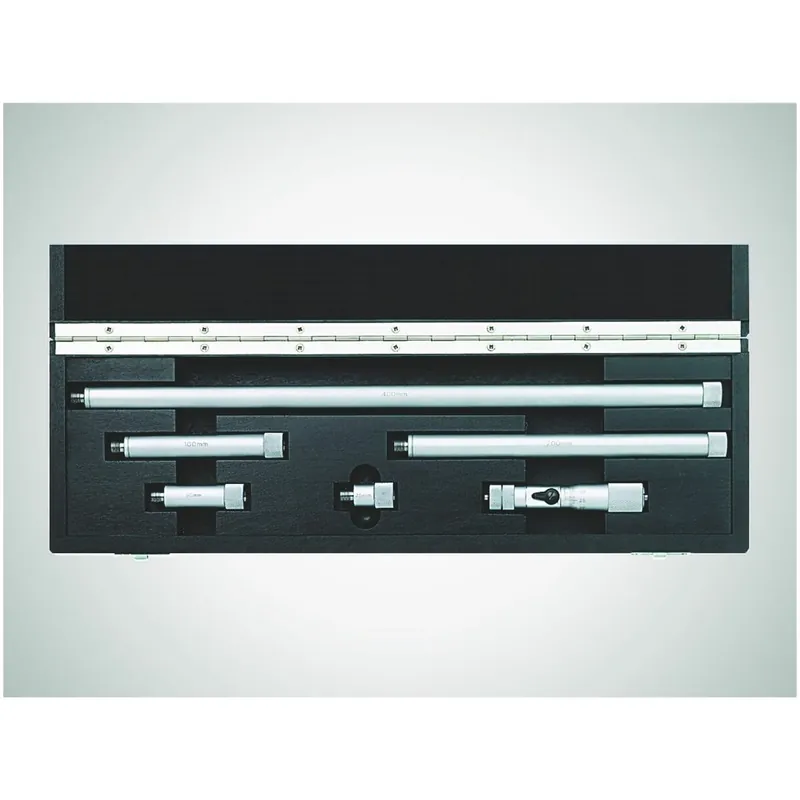

Scope of delivery: Measuring head 44 Cm, from measuring range 100-150 mm with extensions 44 Cv, case
Cecha szcz.:
- Application: For measuring internal diameters and distances, as well as use as an adjustable gauge for setting parallel distances, for example
- Measuring range: 100 – 125 mm
- Scale divisions mm: 0,01
- Dimension e in mm: 18 mm
- Dimension b in mm: 16 mm
- Error limit_µm: 6 µm
- Dimension a in mm: 5 mm
- Dimension c in mm: 2 mm
- Dimension d in mm: 2 mm
- Spindle pitch_mm: 0.5 mm
Norma:
DIN 863-4
