Nowy Carbide Turning Insert – TCGT110304L-A3 KW10

Opis

Opis:

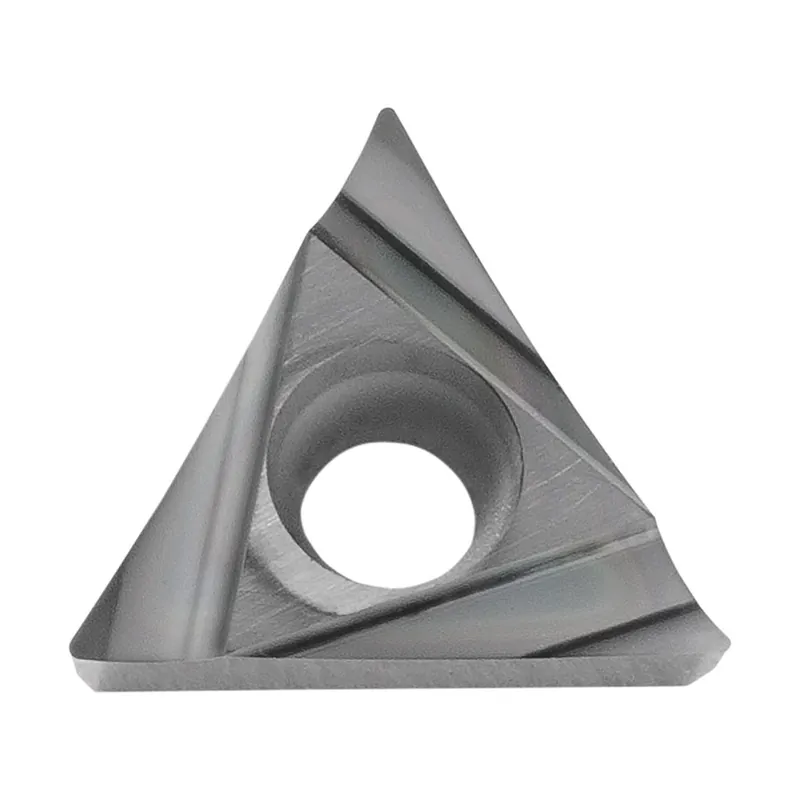

Carbide Turning Insert TCGT110304L-A3 KW10

Cecha szcz.:

RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 3
S (GTC – Insert thickness): 3.18 mm
Corner radius (RE): 4
IC (GTC – Inscribed circle diameter): 6.35 mm
AN (GTC – Clearance angle major): 7 Degree
LE (GTC – Cutting edge effective length): 8 mm
L (GTC – Cutting edge length): 10.998 mm
EPSR (GTC – Insert included angle): 60 Degree
Size: 1103
Chip breaker: A3
TC (GTC – Tolerance class insert): G
Grade: KW10
HAND (GTC – Insert hand): L
Description: TCGT
