Nie przegap Pushbutton safety coupling I.D. 8, ISO 6150 C, G 3/8 IT

Opis

Opis:

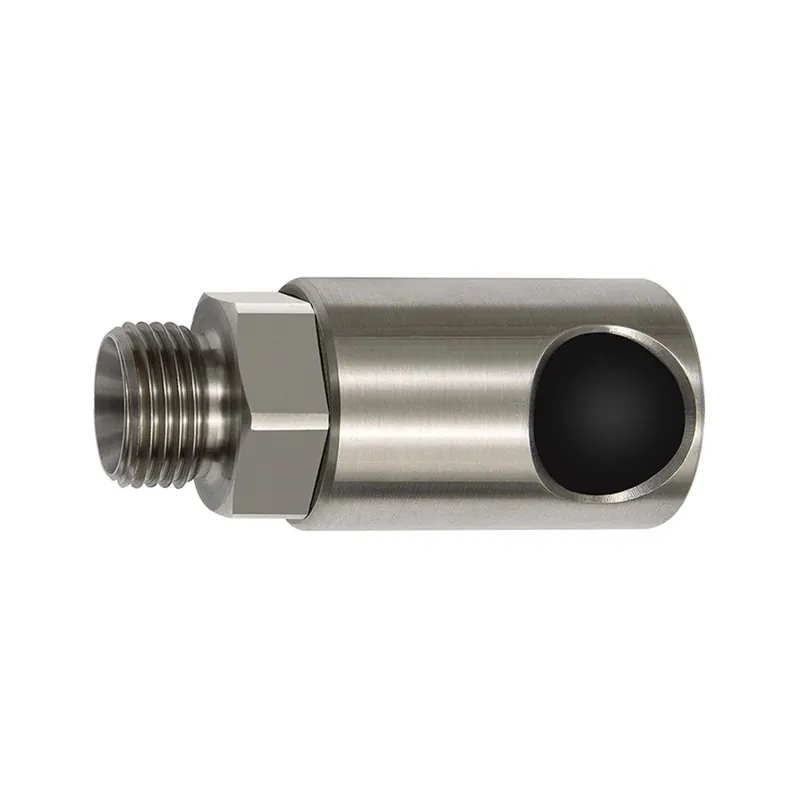

Pushbutton safety coupling I.D. 8, ISO 6150 C, Stainless steel, G 3/8 IT, Operating pressure max. 16 bar, Temp. -20 °C to 200 °C

Cecha szcz.:

• NW: 8
• AF: 25 mm
• Spring: stainless steel
• button: stainless steel
• Length: 66.0 mm
• Valve: brass
• Casing: stainless steel
• Connection: G 3/8 IG
• Rate of flow: 2080 l/min (air)
• threaded piece: Steel, galvanised
• sealing material: FKM
• plug profile: in accordance with ISO 6150 C
• Max. operating pressure: 16 bar
• flow measurement: at 6 bar and Δ_p = 1 bar
• Maximum temperature range: 200 °C
• Temperature range min.: -20 °C
