Nie przegap Cermet Turning Insert – VNMG160402GP TN60

Opis

Opis:

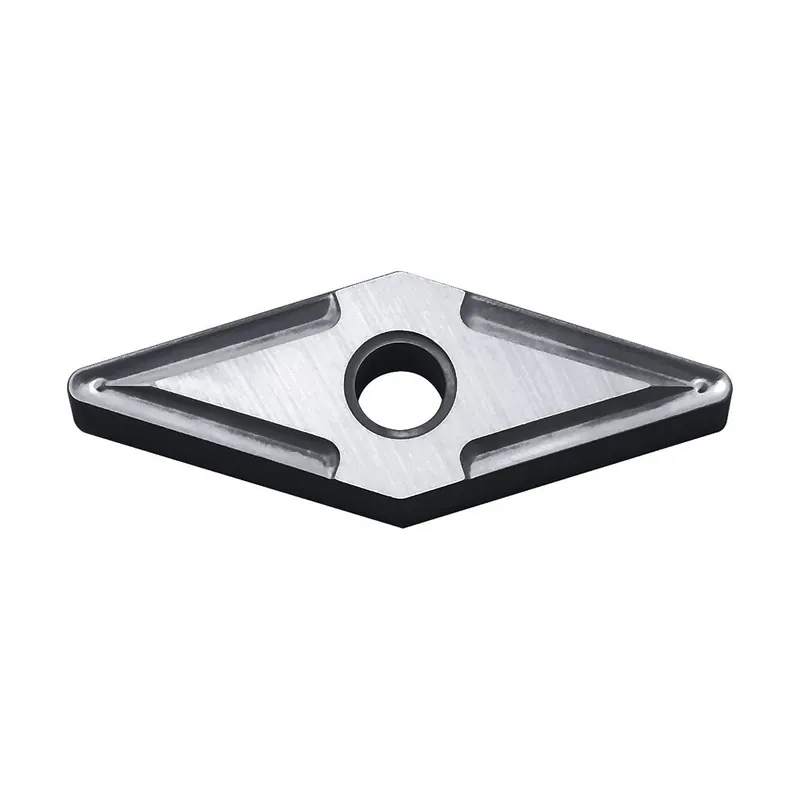

Cermet Turning Insert VNMG160402GP TN60

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.2 mm
Corner radius (RE): 2
IFS (GTC – Insert mounting style code): 2
S (GTC – Insert thickness): 4.76 mm
IC (GTC – Inscribed circle diameter): 9.525 mm
L (GTC – Cutting edge length): 16.606 mm
EPSR (GTC – Insert included angle): 35 Degree
Size: 1604
Chip breaker: GP
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
Grade: TN60
Description: VNMG
