Milling Toolholder – MRX16-S16-08-2T Tylko dziś

Opis

Opis:

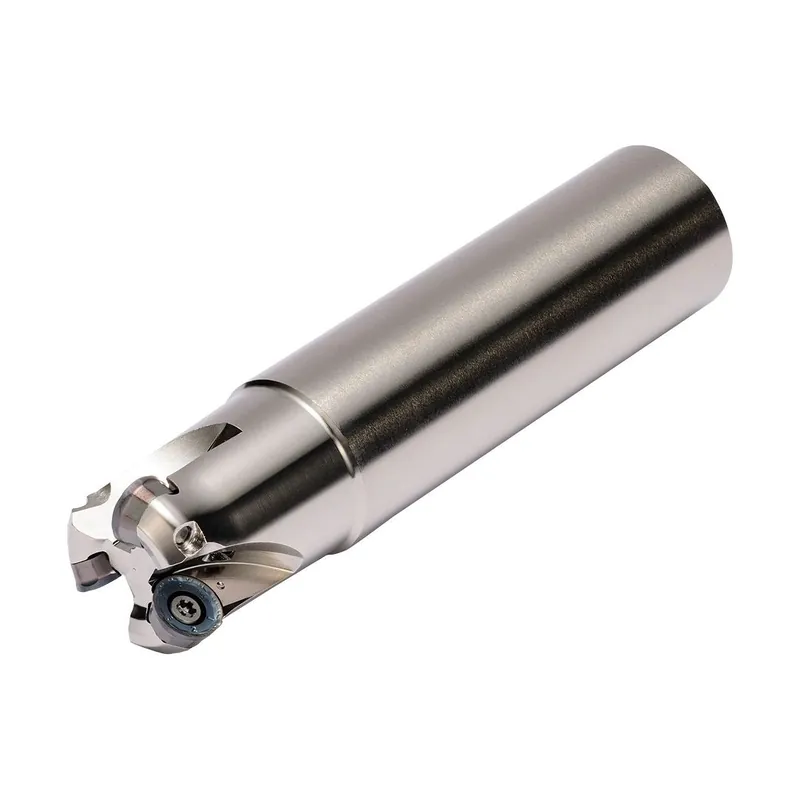

Milling Toolholder MRX16-S16-08-2T

Cecha szcz.:

CNSC (GTC – Coolant entry style code): 0
CXSC (GTC – Coolant exit style code): 0
WT (GTC – Weight of item): 0.19 kg
Number of inserts: 2
ZEFF (GTC – Face effective cutting edge count): 2
S (GTC – Insert thickness, Pos. A): 3.18 mm
APMX (GTC – Depth of cut maximum): 4 mm
Insert size: 8
DC (GTC – Cutting diameter): 8 mm
IC (GTC – Inscribed circle diameter, Pos. A): 8 mm
BD (GTC – Body diameter): 13 mm
AN (GTC – Clearance angle major, Pos. A): 15 Degree
Shank diameter (DCON): 16
DCON (GTC – Connection diameter machine side): 16 mm
DCX (GTC – Cutting diameter maximum): 16 mm
LU (GTC – Usable length): 20 mm
OHX (GTC – Protruding length): 45 mm
LS (GTC – Shank length): 70 mm
Total length (OAL): 110
LF (GTC – Functional length): 110 mm
OAL (GTC – Overall length): 110 mm
CZCMS (GTC – Connection size code machine side): 160
RPMX (GTC – Rotational speed maximum): 38000 1/min
Recess (LDN): 40,0
Shank type: Cylindrical
TCDCON (GTC – ISO-tolerance class connection bore diameter machine side): h6
Internal coolant: No
Diameter (DC): ø16
HAND (GTC – Cutting direction): R
MIID (GTC – Master insert identification, position A): RDMT0803M0ER-GM
BMC (GTC – Body material code): S
