Milling Toolholder – MEW18-S16-10-2T Niska cena

Opis

Opis:

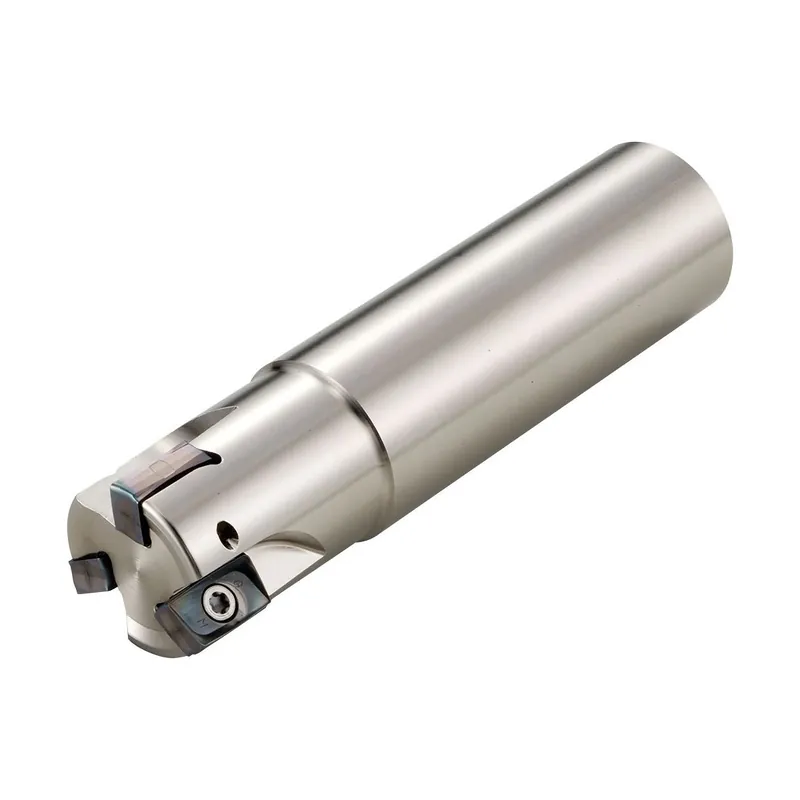

Milling Toolholder MEW18-S16-10-2T

Cecha szcz.:

AN (GTC – Clearance angle major, Pos. A): 0 Degree
WT (GTC – Weight of item): 0.178 kg
RE (GTC – Corner radius, Pos. A): 0.8 mm
CNSC (GTC – Coolant entry style code): 1
Number of inserts: 2
ZEFF (GTC – Face effective cutting edge count): 2
ZEFP (GTC – Peripheral effective cutting edge count): 2
CXSC (GTC – Coolant exit style code): 3
S (GTC – Insert thickness, Pos. A): 4 mm
IC (GTC – Inscribed circle diameter, Pos. A): 6.6 mm
W1 (GTC – Insert width, Pos. A): 6.6 mm
Insert size: 10
APMX (GTC – Depth of cut maximum): 10 mm
L (GTC – Cutting edge length, Pos. A): 10.9 mm
Shank diameter (DCON): 16
DCON (GTC – Connection diameter machine side): 16 mm
BD (GTC – Body diameter): 16.8 mm
DC (GTC – Cutting diameter): 18 mm
LU (GTC – Usable length): 21 mm
OHX (GTC – Protruding length): 30 mm
LS (GTC – Shank length): 75 mm
EPSR (GTC – Cutting edge angle major, Pos. A): 88 Degree
Cutting angle: 90
KAPR (GTC – Tool cutting edge angle): 90 Degree
Total length (OAL): 100
LF (GTC – Functional length): 100 mm
OAL (GTC – Overall length): 100 mm
CZCMS (GTC – Connection size code machine side): 160
RPMX (GTC – Rotational speed maximum): 43000 1/min
Recess (LDN): 25,0
Shank type: Cylindrical
TCDCON (GTC – ISO-tolerance class connection bore diameter machine side): h6
Diameter (DC): ø18
HAND (GTC – Cutting direction): R
BMC (GTC – Body material code): S
Internal coolant: Yes
