Milling Toolholder – MEW16-M08-10-2T Taniej

Opis

Opis:

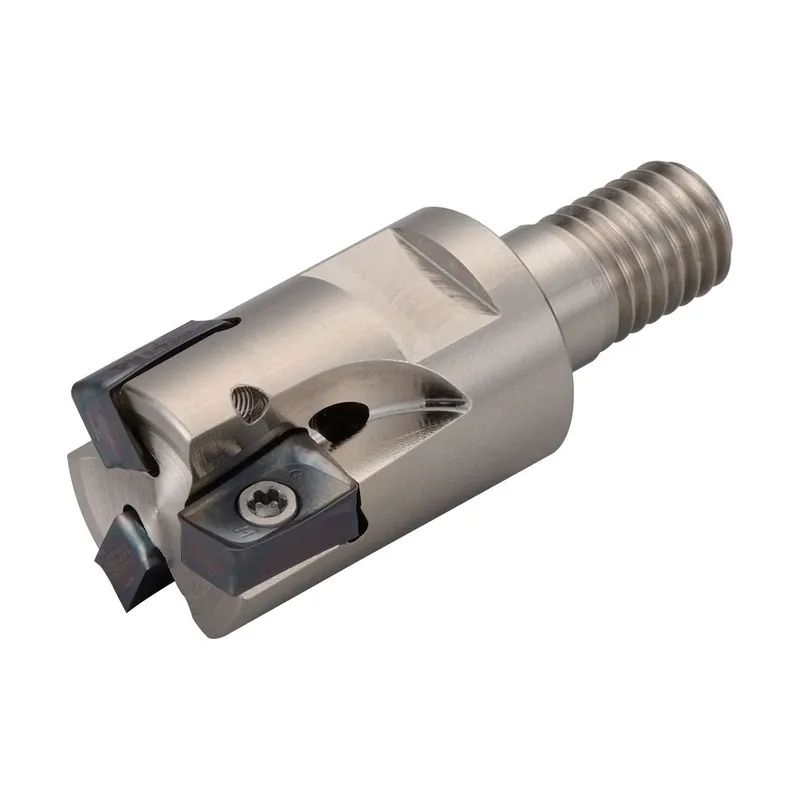

Milling Toolholder MEW16-M08-10-2T

Cecha szcz.:

AN (GTC – Clearance angle major, Pos. A): 0 Degree
WT (GTC – Weight of item): 0.066 kg
RE (GTC – Corner radius, Pos. A): 0.8 mm
CNSC (GTC – Coolant entry style code): 1
Number of inserts: 2
ZEFF (GTC – Face effective cutting edge count): 2
ZEFP (GTC – Peripheral effective cutting edge count): 2
CXSC (GTC – Coolant exit style code): 3
S (GTC – Insert thickness, Pos. A): 4 mm
IC (GTC – Inscribed circle diameter, Pos. A): 6.6 mm
W1 (GTC – Insert width, Pos. A): 6.6 mm
DCON (GTC – Connection diameter machine side): 8 mm
Insert size: 10
APMX (GTC – Depth of cut maximum): 10 mm
L (GTC – Cutting edge length, Pos. A): 10.9 mm
BD (GTC – Body diameter): 14.8 mm
DC (GTC – Cutting diameter): 16 mm
LS (GTC – Shank length): 18 mm
LU (GTC – Usable length): 21 mm
OHX (GTC – Protruding length): 25 mm
Total length (OAL): 43
OAL (GTC – Overall length): 43 mm
CZCMS (GTC – Connection size code machine side): 80
EPSR (GTC – Cutting edge angle major, Pos. A): 88 Degree
Cutting angle: 90
KAPR (GTC – Tool cutting edge angle): 90 Degree
RPMX (GTC – Rotational speed maximum): 43750 1/min
Diameter (DC): ø16
HAND (GTC – Cutting direction): R
BMC (GTC – Body material code): S
Shank type: Shank M8
Internal coolant: Yes
