Milling Toolholder – MEW080R-15-6T Premium

Opis

Opis:

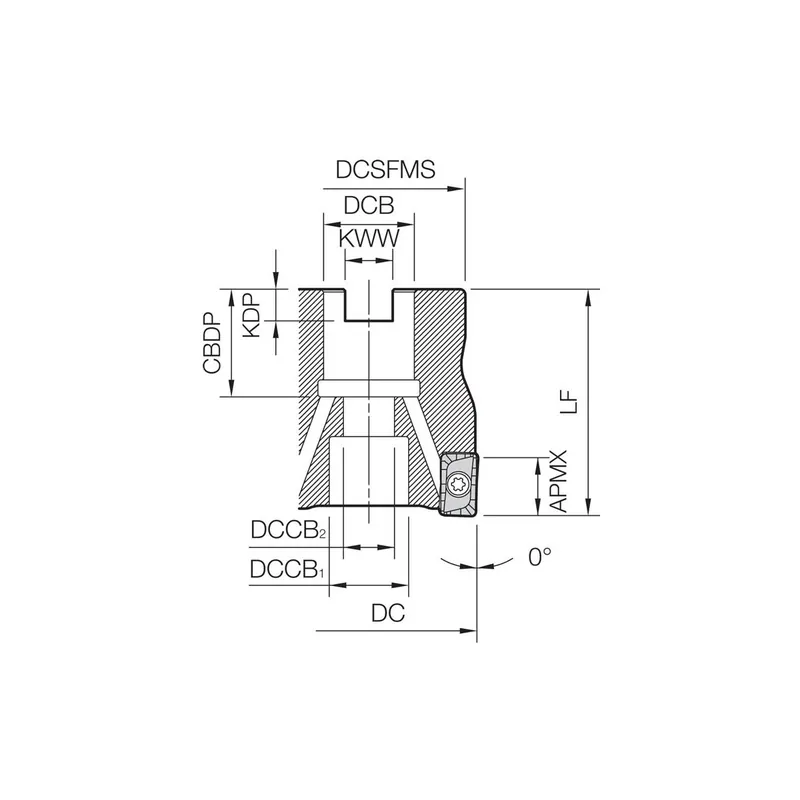

Milling Toolholder MEW080R-15-6T

Cecha szcz.:

AN (GTC – Clearance angle major, Pos. A): 0 Degree
RE (GTC – Corner radius, Pos. A): 0.8 mm
CNSC (GTC – Coolant entry style code): 1
WT (GTC – Weight of item): 1 kg
CXSC (GTC – Coolant exit style code): 3
S (GTC – Insert thickness, Pos. A): 5.6 mm
ZEFF (GTC – Face effective cutting edge count): 6
ZEFP (GTC – Peripheral effective cutting edge count): 6
IC (GTC – Inscribed circle diameter, Pos. A): 9.2 mm
W1 (GTC – Insert width, Pos. A): 9.2 mm
L (GTC – Cutting edge length, Pos. A): 15.7 mm
DCON (GTC – Connection diameter machine side): 25.4 mm
OAL (GTC – Overall length): 50 mm
DC (GTC – Cutting diameter): 80 mm
EPSR (GTC – Cutting edge angle major, Pos. A): 88 Degree
KAPR (GTC – Tool cutting edge angle): 90 Degree
CZCMS (GTC – Connection size code machine side): 1000
RPMX (GTC – Rotational speed maximum): 12000 1/min
HAND (GTC – Cutting direction): R
BMC (GTC – Body material code): S
