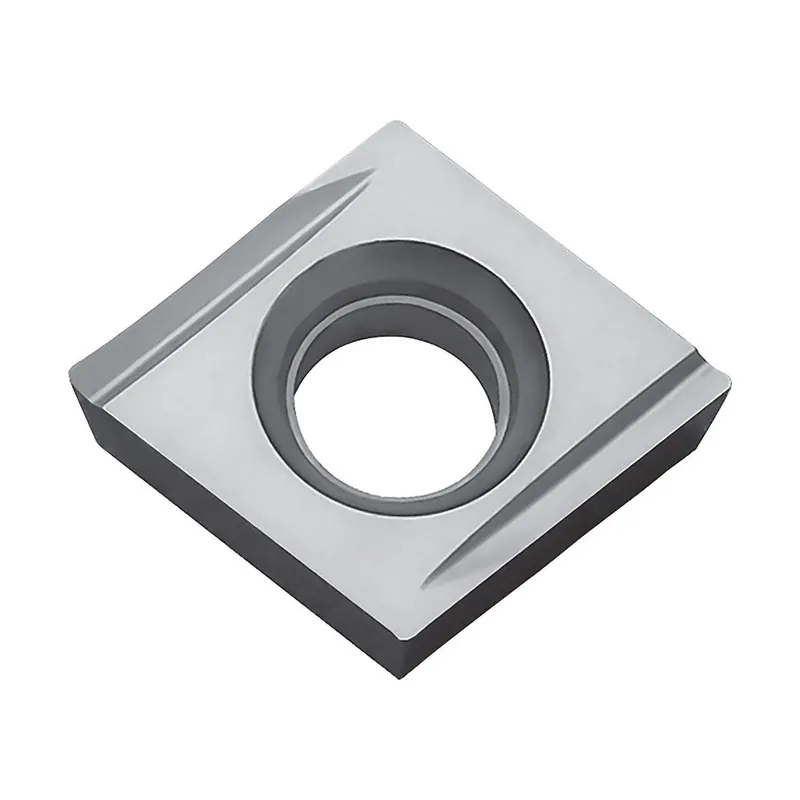

Łatwy zwrot Cermet Turning Insert – CPMH080204L-Y TN60

Opis

Opis:

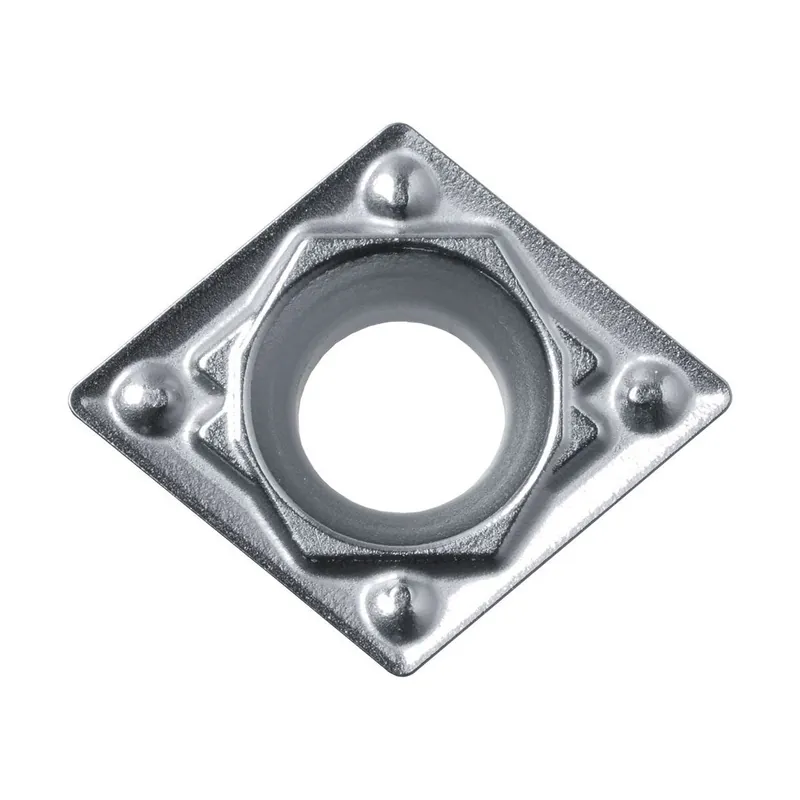

Cermet Turning Insert CPMH080204L-Y TN60

Cecha szcz.:

RE (GTC – Corner radius): 0.4 mm
S (GTC – Insert thickness): 2.38 mm
LE (GTC – Cutting edge effective length): 3 mm
Corner radius (RE): 4
IFS (GTC – Insert mounting style code): 4
IC (GTC – Inscribed circle diameter): 7.94 mm
L (GTC – Cutting edge length): 8.062 mm
AN (GTC – Clearance angle major): 11 Degree
EPSR (GTC – Insert included angle): 80 Degree
Size: 802
Description: CPMH
HAND (GTC – Insert hand): L
TC (GTC – Tolerance class insert): M
Grade: TN60
Chip breaker: Y
