Kup teraz Cermet Turning Insert – VBMT110304GP TN60

Opis

Opis:

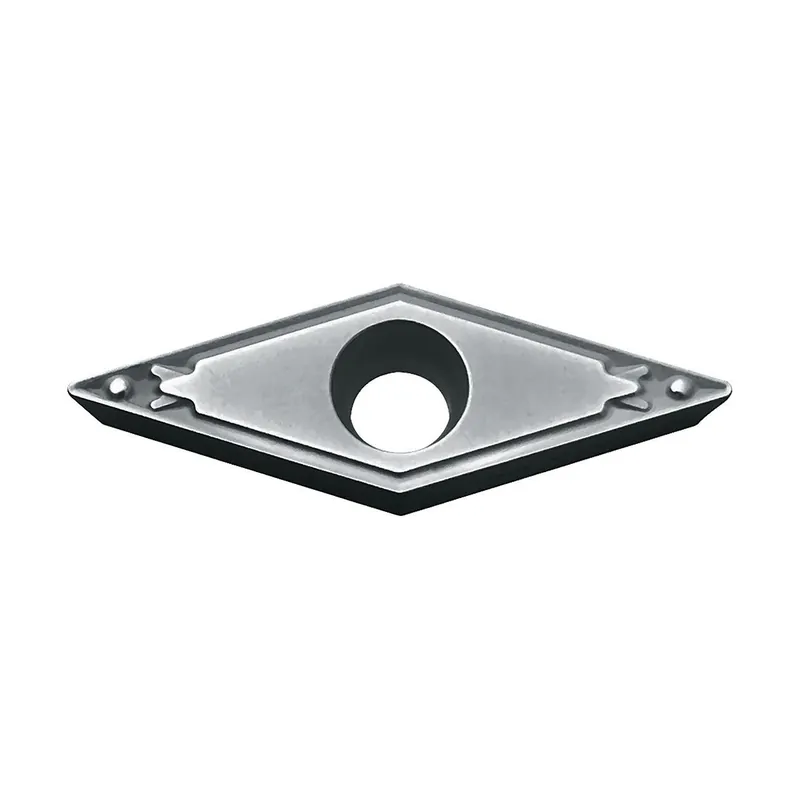

Cermet Turning Insert VBMT110304GP TN60

Cecha szcz.:

RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 3
S (GTC – Insert thickness): 3.18 mm
Corner radius (RE): 4
AN (GTC – Clearance angle major): 5 Degree
IC (GTC – Inscribed circle diameter): 6.35 mm
L (GTC – Cutting edge length): 11.088 mm
EPSR (GTC – Insert included angle): 35 Degree
Size: 1103
Chip breaker: GP
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
Grade: TN60
Description: VBMT
