Kup online Cermet Grooving Insert – GBA43R300-150R TN90

Opis

Opis:

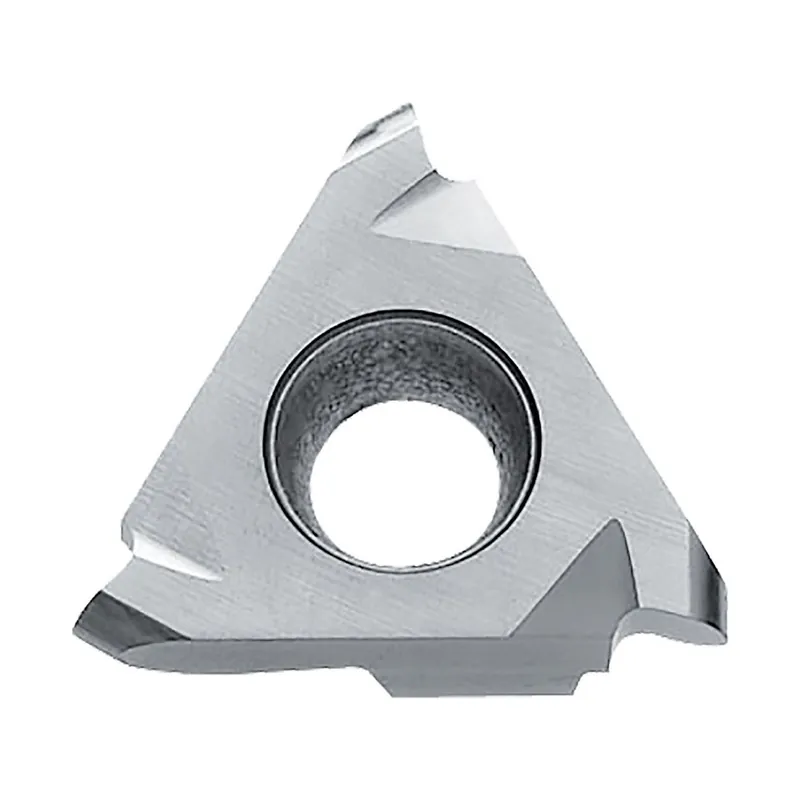

Cermet Grooving Insert GBA43R300-150R TN90

Cecha szcz.:

ANR (GTC – Clearance angle flank right hand): 0 Degree
AN (GTC – Clearance angle major): 0 Degree
WT (GTC – Weight of item): 0.009 kg
PFS (GTC – Profile form): 1
REL (GTC – Corner radius left hand): 1.5 mm
RER (GTC – Corner radius right hand): 1.5 mm
CEDC (GTC – Flute count): 3
CW (GTC – Cutting width): 3 mm
ANL (GTC – Clearance angle flank left hand): 4 Degree
INSL (GTC – Insert length): 22 mm
Grooving width: 3,00
CECC (GTC – Cutting edge condition code): E
Description: GBA
HAND (GTC – Insert hand): R
TCE (GTC – Tipped cutting edge code): S
Grade: TN90
