Do wyczerpania zapasów CENTER BENCH, 818 with V-SUPPORT

Opis

Wykonanie:

Unit composed of:

• Bench gage

• Flatness of the surface is in accordance to DIN 876/1
• Two T-slots for tailstock and / or support arm

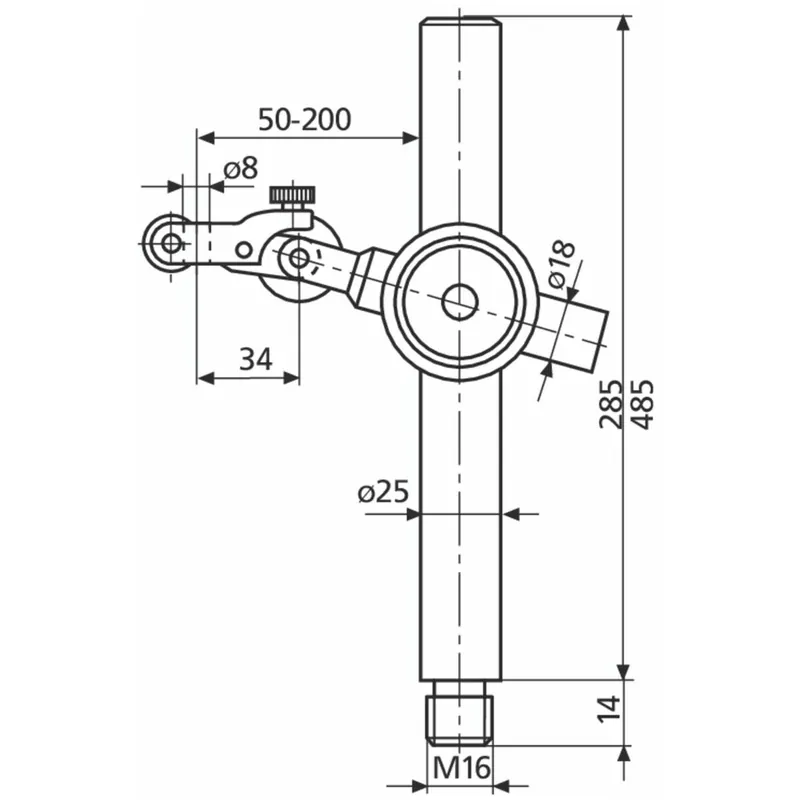

• Support arm 818 XNB
• Support arm with one joint
• With fine adjustment
• V-supports
• Both V-supports can be relocated (slide into position)

Opis:

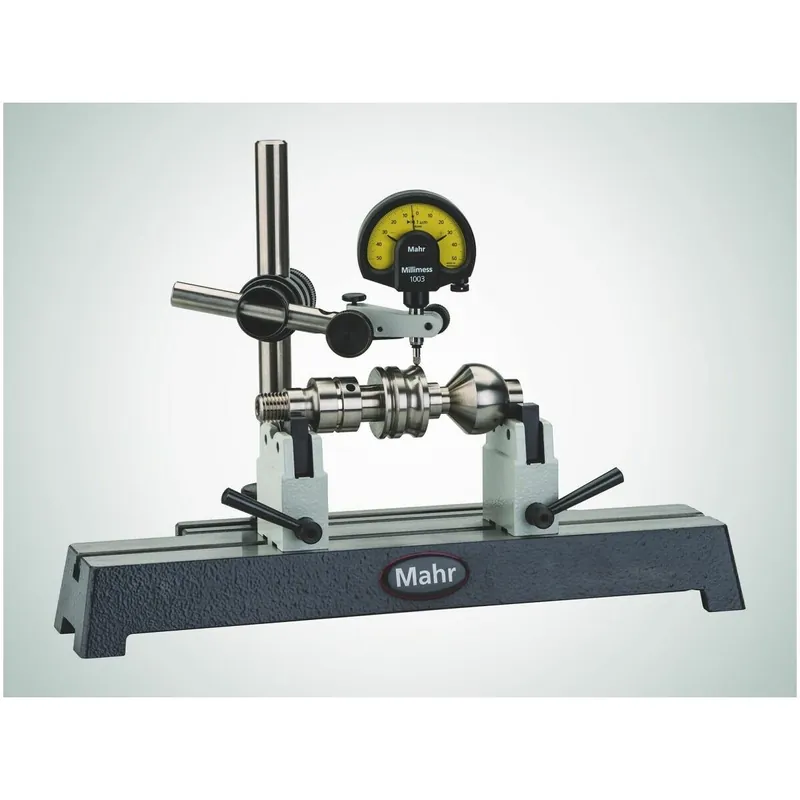

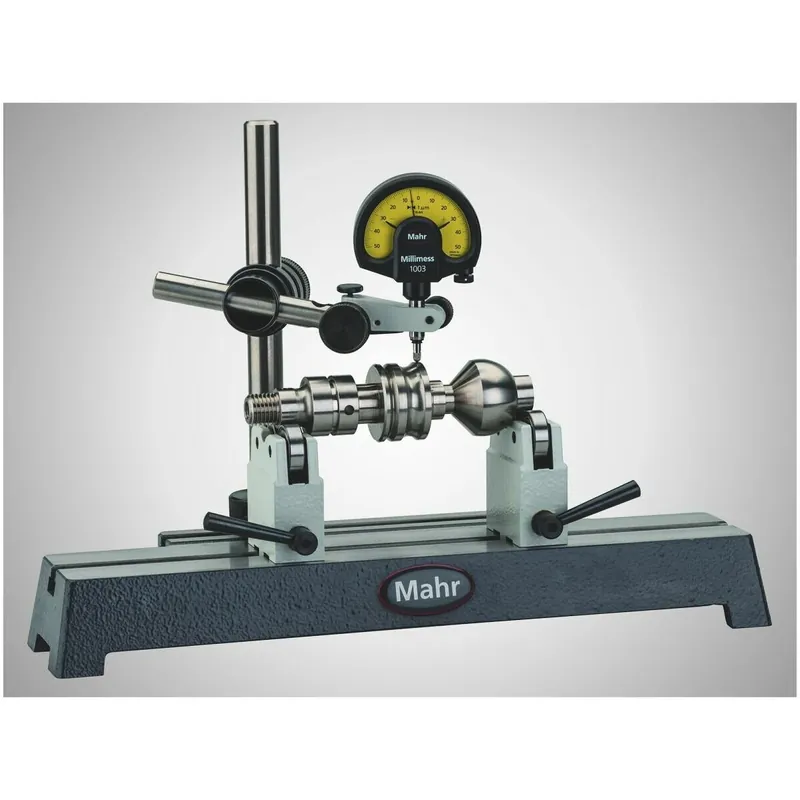

Runout tester with prismatic blocks MarStand 818 P

• Dimensions (L x W) mm: 350 x 110 mm
• Height of prismatic blocks: 70 mm;

Cecha szcz.:

• Calibration type: Uncalibrated
• Product name: Concentricity tester with prism blocks
• Product group name: Measuring stages, measuring stands, concentricity testers
• Product group name: MarStand
• Application:
• Mounting hole: 8H7
• Product type: 818 P
• Dimensions (L x W) mm: 350 x 110
• T-slot width: 10H7
• Dimension L: 350 mm
• Dimension A: 315 mm
• Height of prism blocks: 70 mm
• Dimension D: 25 mm
• Dimension b in mm: 9.6 mm
• Product weight: 6.50 kg
• Dimension d in mm: 5 mm
• Permissible centre offset height: 0.05 mm
• Permissible lateral centre offset: 0.05 mm
