Opis
Opis:

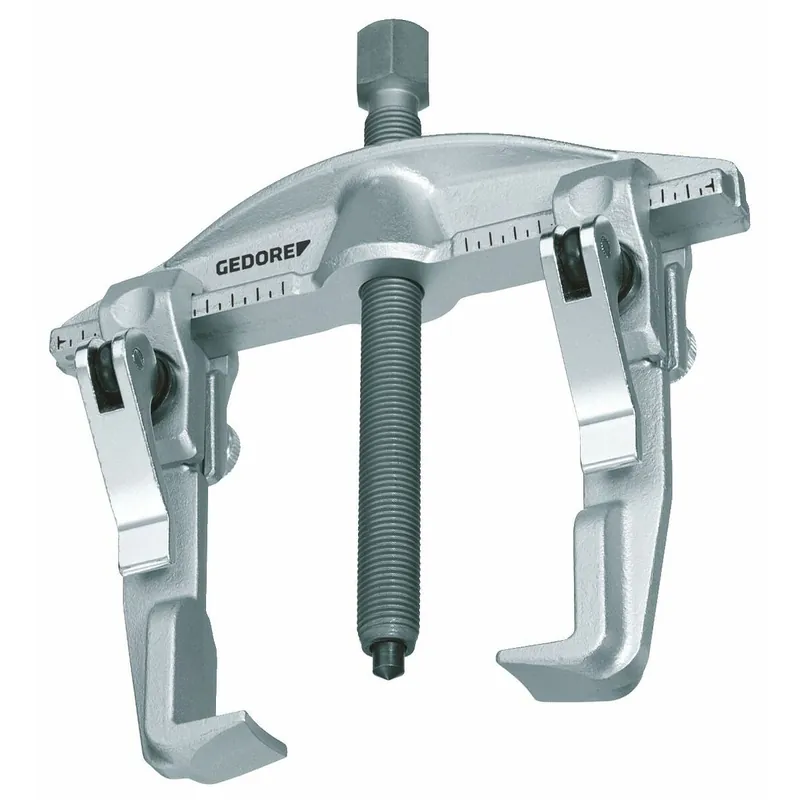

- Strong drop forged pattern
- Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- The quick-action adjustment feature supports the energy-saving and fast operation
- Spindle with replaceable ball and tip point
- Upgradeable with hydraulic spindle (see table)
Cecha szcz.:
- 1000 V insulated: no
- 3D data available: no
- Anti-slip device on spindle available: no
- Can be retrofitted with hydraulic spindle: no
- Clamping bracket available: no
- Clamping width inner pull-off a2 (min.) [mm]: 70 mm
- Clamping width inside pull-off a2 (max.) [mm]: 170 mm
- Clamping width outer pull-off (max.) [mm]: 130 mm
- Design: 2-arm
- Hook base width at working face c1 [mm]: 22 mm
- Hook brake present: no
- Hook foot depth usable d2 [mm]: 12 mm
- Hook foot thickness at the point e1 [mm]: 3,0 mm
- Hook parallel displaceable: yes
- Hydraulic spindle available: no
- Load on the entire puller (max.) [t]: 3 t
- Number of arms: 2
- Number of hooks: 2
- Pulling force (max.) [t]: 3
- Quick release lever available: yes
- REACH registration available: no
- Reversible arms available: yes
- Scale graduation available: x
- Screws included: no
- Spindle anti-slip device: no
- Spindle Mounting: M14x1,5mm
- Spindle Surface coating: Nitrocarburised
- Spindle Thread length (usable) [mm]: 140 mm
- Spindle thread size: M14x1,5x140mm
- Spindle Thrust piece type: Ball & point
- Spindle tip exchangeable: yes
- Spindle Width across flats: 17 mm
- Usable clamping depth b [mm]: 100 mm
- Use/application: For pulling off drive pulleys, wheels, ball bearings etc.
- VDE certified: no
- Width across flats [mm: 17 mm
