Darmowa dostawa Cermet Turning Insert – WNMG080412CQ TN60

Opis

Opis:

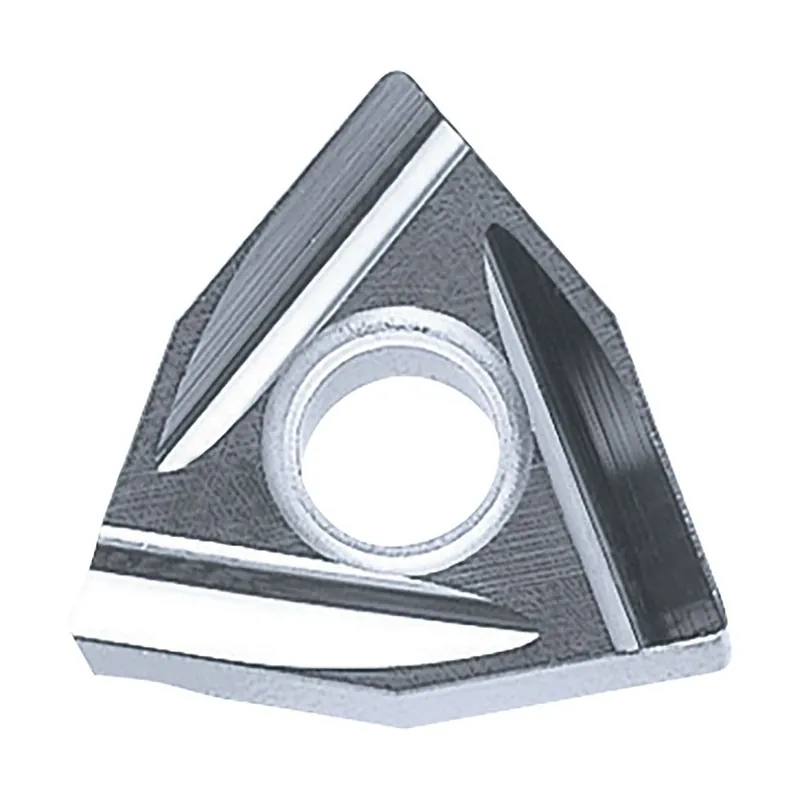

Cermet Turning Insert WNMG080412CQ TN60

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 1.2 mm
IFS (GTC – Insert mounting style code): 2
S (GTC – Insert thickness): 4.76 mm
L (GTC – Cutting edge length): 8.687 mm
Corner radius (RE): 12
IC (GTC – Inscribed circle diameter): 12.7 mm
EPSR (GTC – Insert included angle): 80 Degree
Size: 804
Chip breaker: CQ
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
Grade: TN60
Description: WNMG
