Darmowa dostawa Cermet Turning Insert – CCGT030102R-F TN60

Opis

Opis:

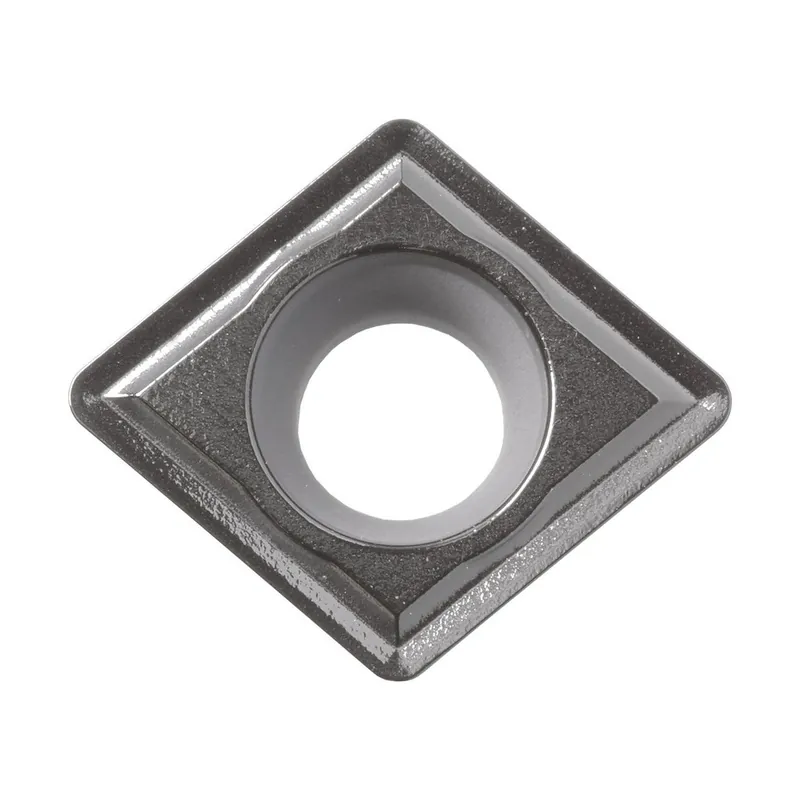

Cermet Turning Insert CCGT030102R-F TN60

Cecha szcz.:

RE (GTC – Corner radius): 0.2 mm
S (GTC – Insert thickness): 1.4 mm
LE (GTC – Cutting edge effective length): 1.7 mm
Corner radius (RE): 2
IFS (GTC – Insert mounting style code): 3
IC (GTC – Inscribed circle diameter): 3.5 mm
L (GTC – Cutting edge length): 3.554 mm
AN (GTC – Clearance angle major): 7 Degree
EPSR (GTC – Insert included angle): 80 Degree
Size: 301
Description: CCGT
Chip breaker: F
TC (GTC – Tolerance class insert): G
HAND (GTC – Insert hand): R
Grade: TN60
