Cermet Turning Insert – WNGG060402R-S TN60 Wybór klientów

Opis

Opis:

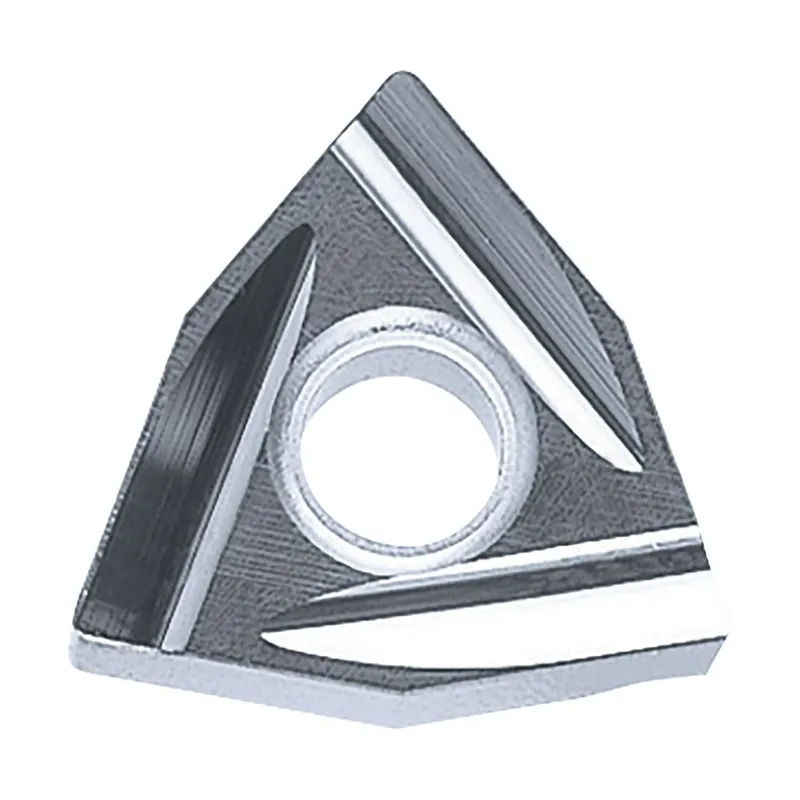

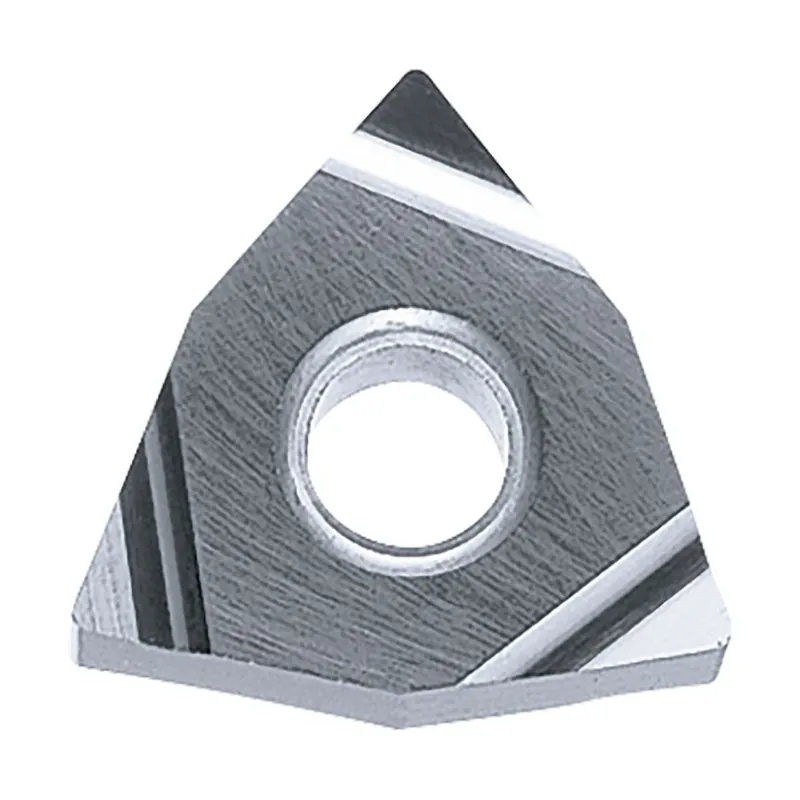

Cermet Turning Insert WNGG060402R-S TN60

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.2 mm
Corner radius (RE): 2
IFS (GTC – Insert mounting style code): 2
LE (GTC – Cutting edge effective length): 4.5 mm
S (GTC – Insert thickness): 4.76 mm
L (GTC – Cutting edge length): 6.515 mm
IC (GTC – Inscribed circle diameter): 9.525 mm
EPSR (GTC – Insert included angle): 80 Degree
Size: 604
TC (GTC – Tolerance class insert): G
HAND (GTC – Insert hand): R
Chip breaker: S
Grade: TN60
Description: WNGG
