Cermet Turning Insert – TCGT110302EL-U TN60 Kup online

Opis

Opis:

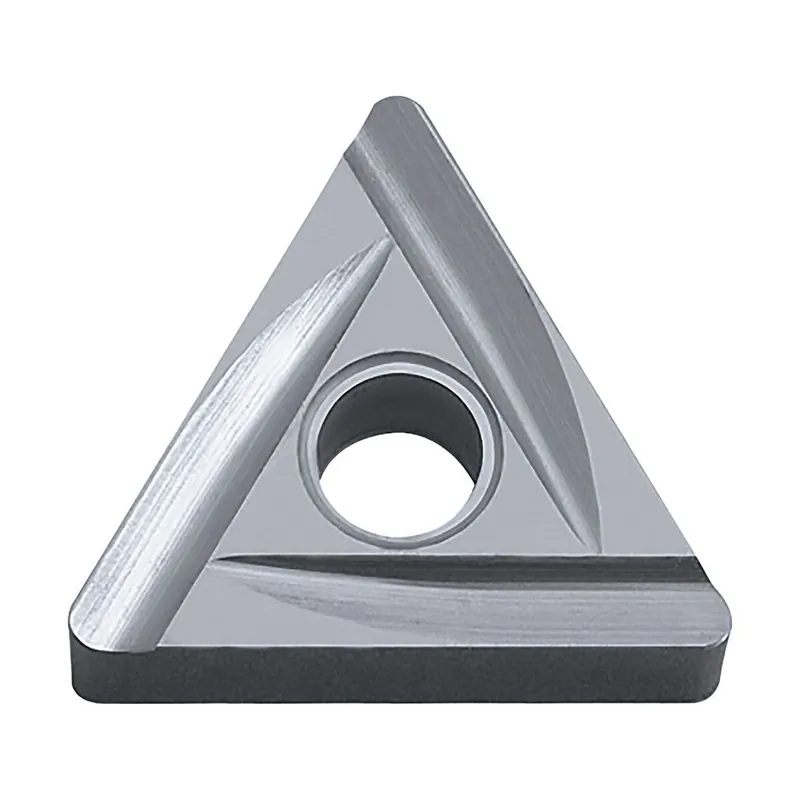

Cermet Turning Insert TCGT110302EL-U TN60

Cecha szcz.:

RE (GTC – Corner radius): 0.2 mm
Corner radius (RE): 2
IFS (GTC – Insert mounting style code): 3
S (GTC – Insert thickness): 3.18 mm
LE (GTC – Cutting edge effective length): 5 mm
IC (GTC – Inscribed circle diameter): 6.35 mm
AN (GTC – Clearance angle major): 7 Degree
L (GTC – Cutting edge length): 10.998 mm
EPSR (GTC – Insert included angle): 60 Degree
Size: 1103
Chip breaker: EL-U
TC (GTC – Tolerance class insert): G
HAND (GTC – Insert hand): L
Description: TCGT
Grade: TN60
