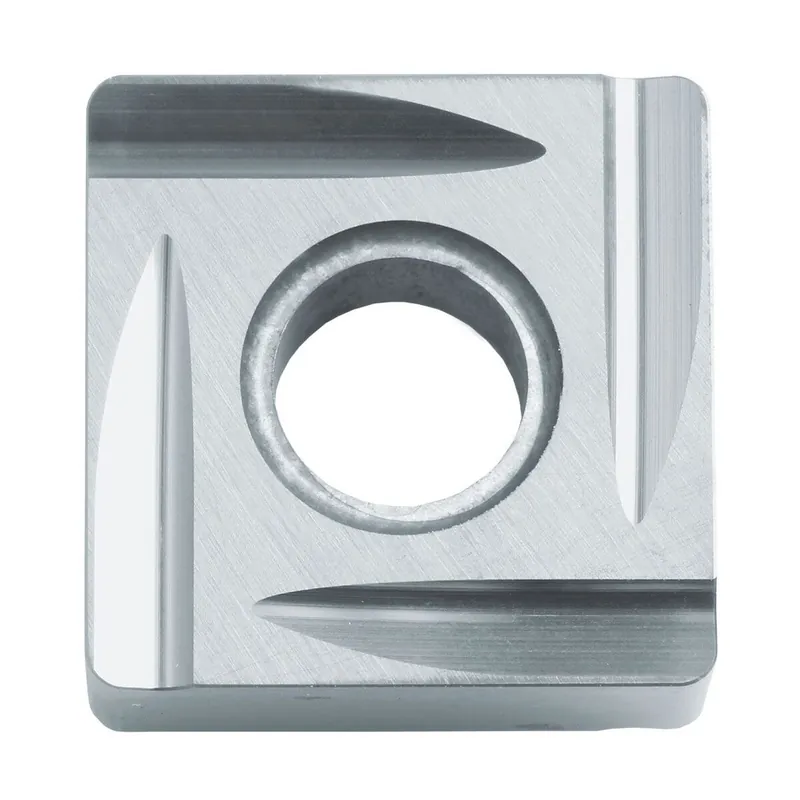

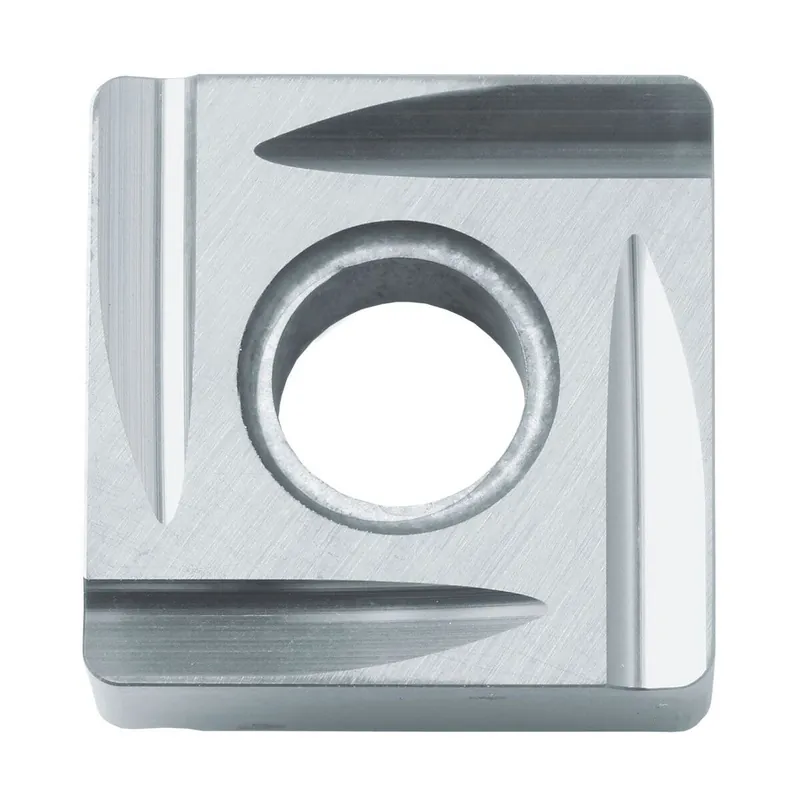

Cermet Turning Insert – SNGG090304L-B TN60 Ograniczona ilość

Opis

Opis:

Cermet Turning Insert SNGG090304L-B TN60

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 2
LE (GTC – Cutting edge effective length): 2.5 mm
S (GTC – Insert thickness): 3.18 mm
Corner radius (RE): 4
IC (GTC – Inscribed circle diameter): 9.525 mm
L (GTC – Cutting edge length): 9.525 mm
EPSR (GTC – Insert included angle): 90 Degree
Size: 903
Chip breaker: B
TC (GTC – Tolerance class insert): G
HAND (GTC – Insert hand): L
Description: SNGG
Grade: TN60
