Cermet Turning Insert – DNGG150404R TN60 Tylko do końca tygodnia

Opis

Opis:

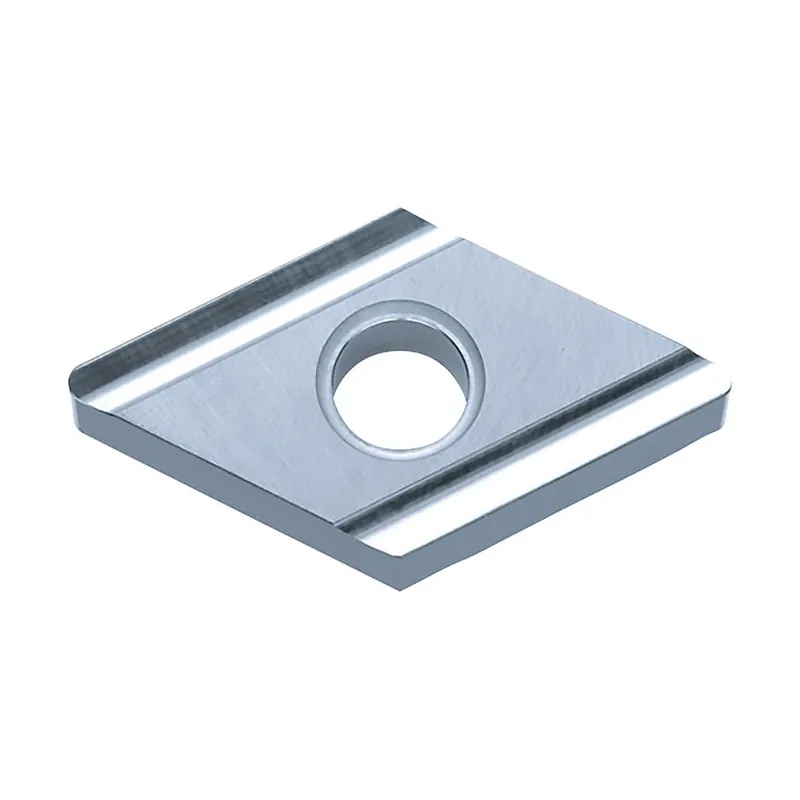

Cermet Turning Insert DNGG150404R TN60

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 2
Corner radius (RE): 4
S (GTC – Insert thickness): 4.76 mm
IC (GTC – Inscribed circle diameter): 12.7 mm
L (GTC – Cutting edge length): 15.504 mm
EPSR (GTC – Insert included angle): 55 Degree
Size: 1504
Description: DNGG
TC (GTC – Tolerance class insert): G
HAND (GTC – Insert hand): R
Grade: TN60
