Cermet Turning Insert – DCET070202FR-USF TN60 Zniżka

Opis

Opis:

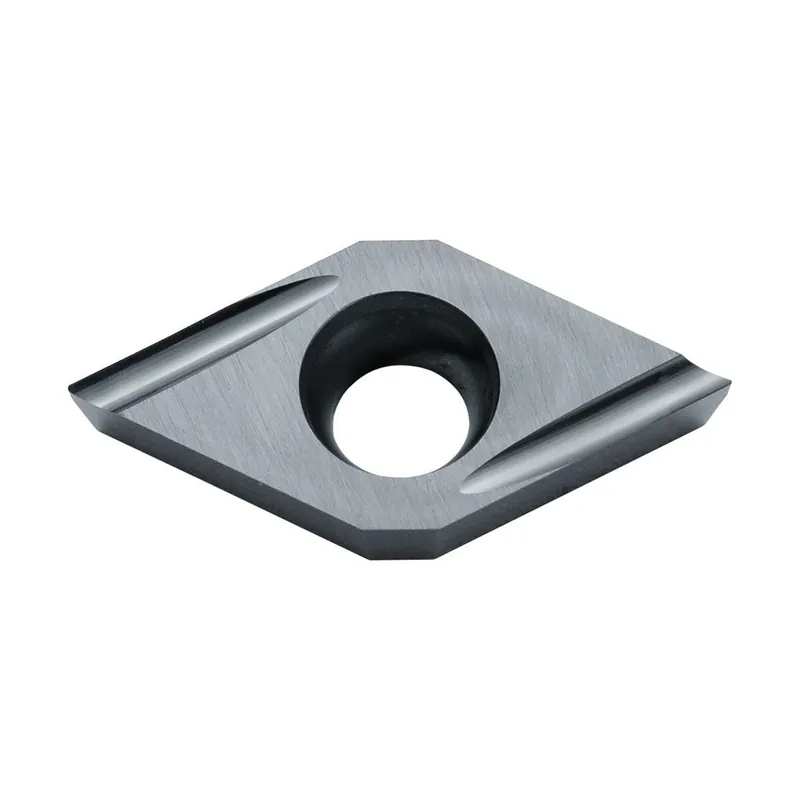

Cermet Turning Insert DCET070202FR-USF TN60

Cecha szcz.:

RE (GTC – Corner radius): 0.2 mm
Corner radius (RE): 2
S (GTC – Insert thickness): 2.38 mm
IFS (GTC – Insert mounting style code): 3
LE (GTC – Cutting edge effective length): 3 mm
IC (GTC – Inscribed circle diameter): 6.35 mm
AN (GTC – Clearance angle major): 7 Degree
L (GTC – Cutting edge length): 7.752 mm
EPSR (GTC – Insert included angle): 55 Degree
Size: 702
Description: DCET
TC (GTC – Tolerance class insert): E
Chip breaker: FR-USF
HAND (GTC – Insert hand): R
Grade: TN60
