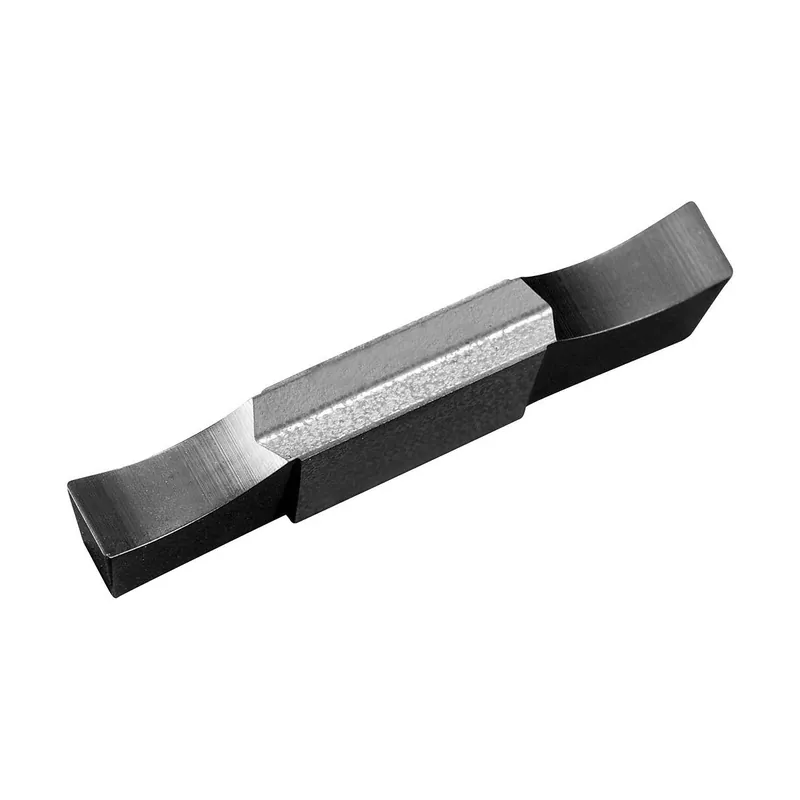

Cermet Grooving Insert – GDG2520N-020GS TN90 Promocja

Opis

Opis:

Cermet Grooving Insert GDG2520N-020GS TN90

Cecha szcz.:

WT (GTC – Weight of item): 0.002 kg
REL (GTC – Corner radius left hand): 0.2 mm
RER (GTC – Corner radius right hand): 0.2 mm
PFS (GTC – Profile form): 1
CEDC (GTC – Flute count): 2
CW (GTC – Cutting width): 2.5 mm
ANR (GTC – Clearance angle flank right hand): 3.5 Degree
ANL (GTC – Clearance angle flank left hand): 3.5 Degree
S (GTC – Insert thickness): 4 mm
S1 (GTC – Insert thickness total): 4.9 mm
AN (GTC – Clearance angle major): 8.5 Degree
INSL (GTC – Insert length): 20 mm
Grooving width: 2,50
CECC (GTC – Cutting edge condition code): E
Description: GDG
CBMD (GTC – Chip breaker manufacturers designation): GS
HAND (GTC – Insert hand): N
TCE (GTC – Tipped cutting edge code): S
Grade: TN90
