Cermet Grooving Insert – GDFM3020N-030GM TN90 Sprawdź teraz

Opis

Opis:

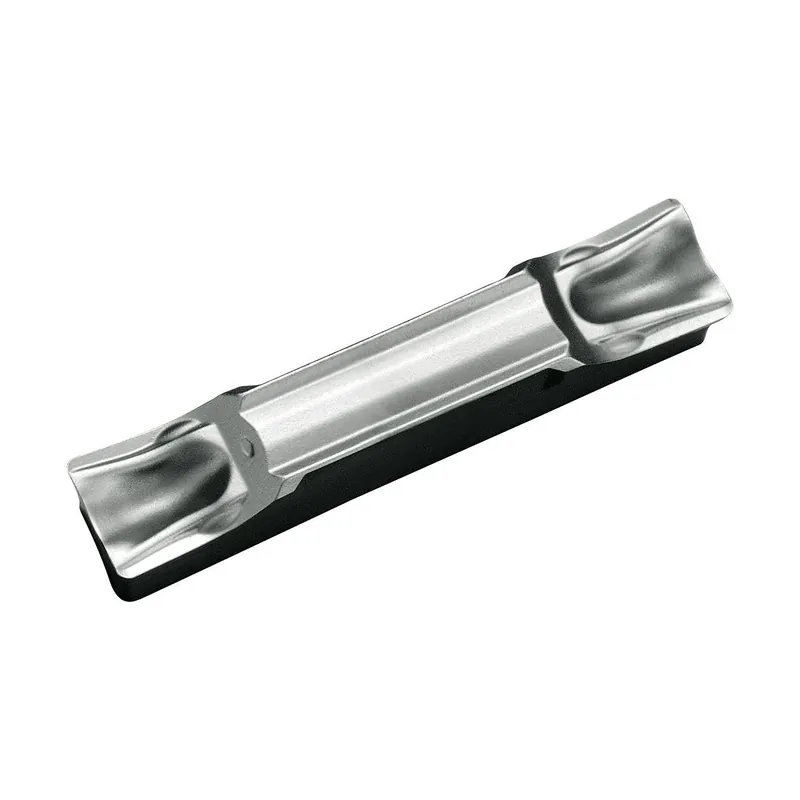

Cermet Grooving Insert GDFM3020N-030GM TN90

Cecha szcz.:

WT (GTC – Weight of item): 0.001 kg
REL (GTC – Corner radius left hand): 0.3 mm
RER (GTC – Corner radius right hand): 0.3 mm
PFS (GTC – Profile form): 1
CEDC (GTC – Flute count): 2
CW (GTC – Cutting width): 3 mm
S (GTC – Insert thickness): 3.5 mm
S1 (GTC – Insert thickness total): 4.37 mm
AN (GTC – Clearance angle major): 8.5 Degree
ANR (GTC – Clearance angle flank right hand): 11 Degree
ANL (GTC – Clearance angle flank left hand): 11 Degree
INSL (GTC – Insert length): 20 mm
Grooving width: 3,00
CECC (GTC – Cutting edge condition code): E
Description: GDFM
CBMD (GTC – Chip breaker manufacturers designation): GM
HAND (GTC – Insert hand): N
TCE (GTC – Tipped cutting edge code): S
Grade: TN90
