Cermet Grooving Insert – FMN3 TN90 Taniej

Opis

Opis:

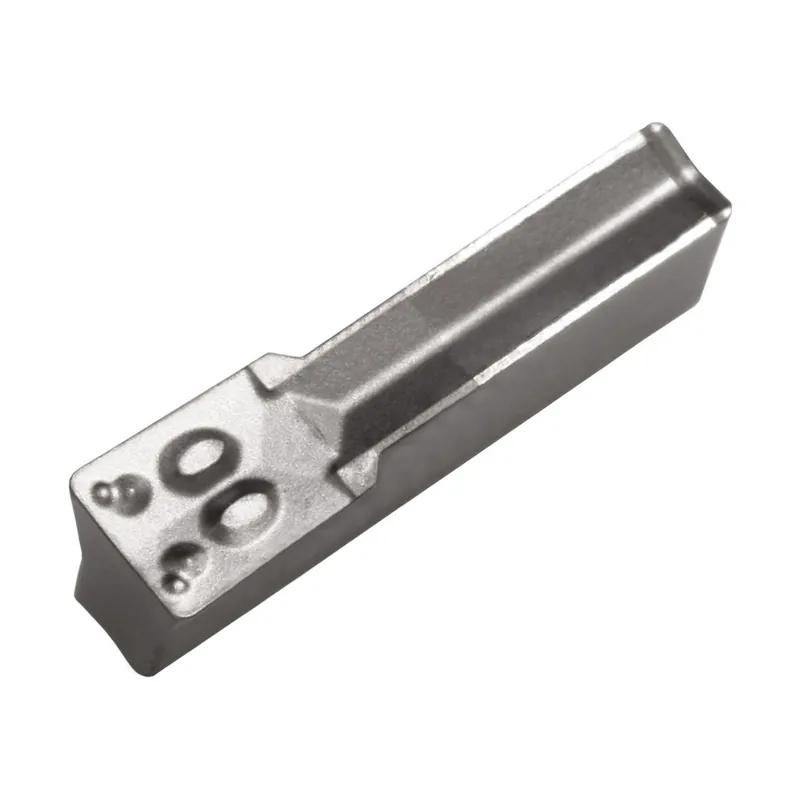

Cermet Grooving Insert FMN3 TN90

Cecha szcz.:

REL (GTC – Corner radius left hand): 0.25 mm
RER (GTC – Corner radius right hand): 0.25 mm
CEDC (GTC – Flute count): 1
PFS (GTC – Profile form): 1
CW (GTC – Cutting width): 3 mm
S (GTC – Insert thickness): 3.5 mm
S1 (GTC – Insert thickness total): 4 mm
ANR (GTC – Clearance angle flank right hand): 6 Degree
ANL (GTC – Clearance angle flank left hand): 6 Degree
AN (GTC – Clearance angle major): 8 Degree
INSL (GTC – Insert length): 12 mm
Grooving width: 3,00
Description: FMN
HAND (GTC – Insert hand): N
TCE (GTC – Tipped cutting edge code): S
Grade: TN90
