Carbide Turning Insert – TPMT090204PP CA510 Szybka dostawa

Opis

Opis:

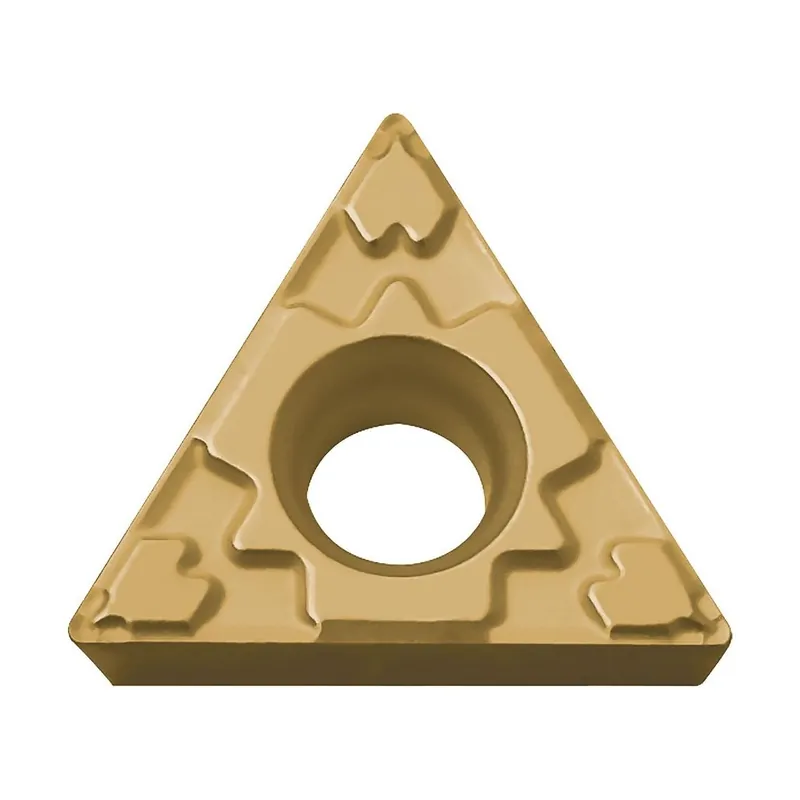

Carbide Turning Insert TPMT090204PP CA510

Cecha szcz.:

RE (GTC – Corner radius): 0.4 mm
S (GTC – Insert thickness): 2.38 mm
IFS (GTC – Insert mounting style code): 3
Corner radius (RE): 4
IC (GTC – Inscribed circle diameter): 5.56 mm
L (GTC – Cutting edge length): 9.63 mm
AN (GTC – Clearance angle major): 11 Degree
EPSR (GTC – Insert included angle): 60 Degree
Size: 902
Grade: CA510
COATING (GTC – Coating): CVD Coated Carbide
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
Chip breaker: PP
Description: TPMT
