Carbide Turning Insert – DCGW070200 KW10 Taniej

Opis

Opis:

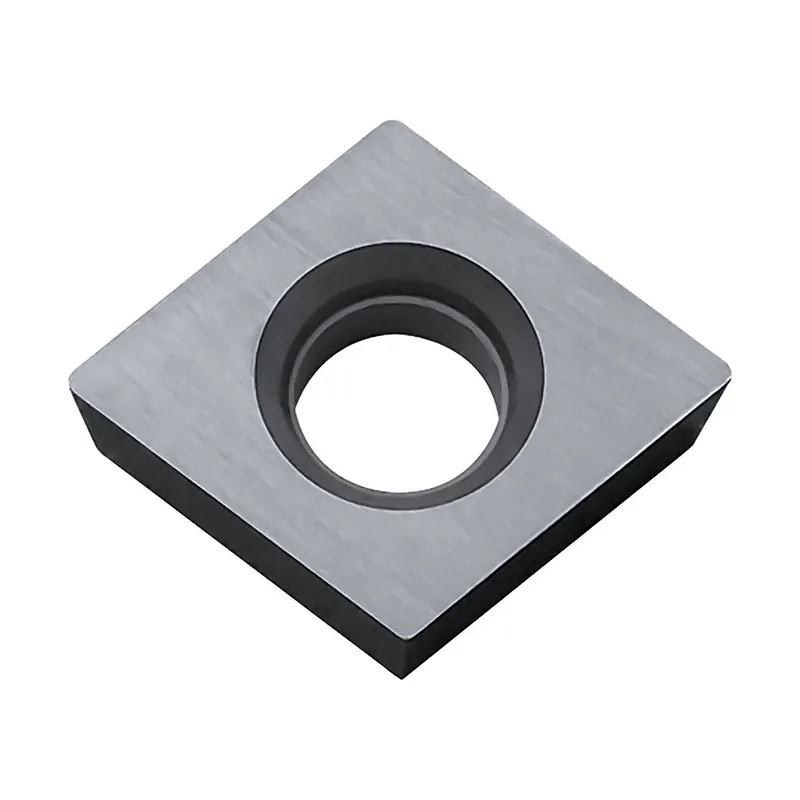

Carbide Turning Insert DCGW070200 KW10

Cecha szcz.:

Corner radius (RE): 0
RE (GTC – Corner radius): 0.1 mm
S (GTC – Insert thickness): 2.38 mm
IFS (GTC – Insert mounting style code): 3
IC (GTC – Inscribed circle diameter): 6.35 mm
AN (GTC – Clearance angle major): 7 Degree
L (GTC – Cutting edge length): 7.752 mm
EPSR (GTC – Insert included angle): 55 Degree
Size: 702
Description: DCGW
TC (GTC – Tolerance class insert): G
Grade: KW10
HAND (GTC – Insert hand): N
