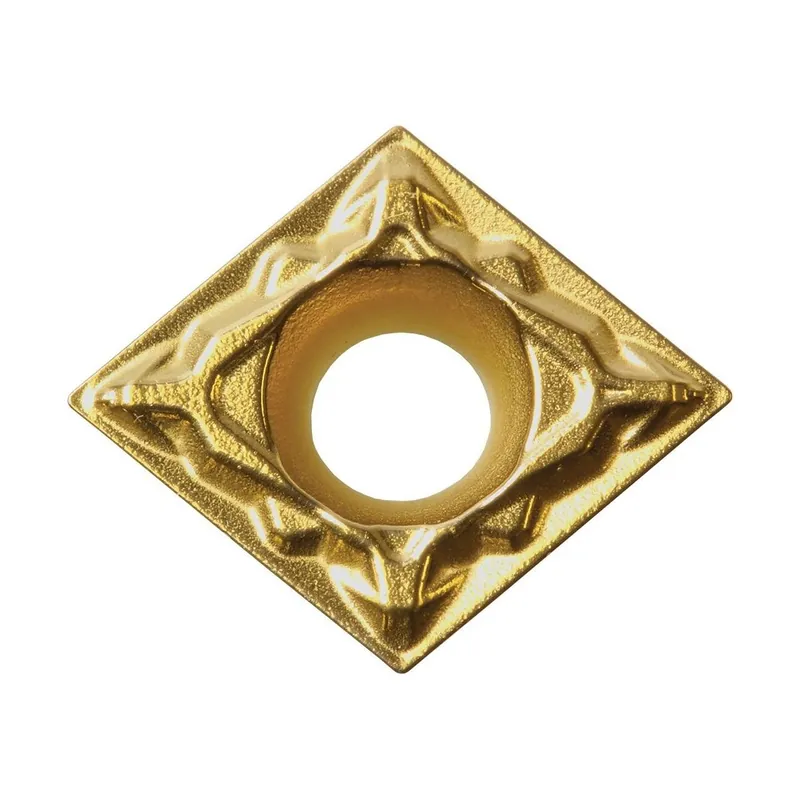

Carbide Turning Insert – CPMT080204GP CA515 Premium

Opis

Opis:

Carbide Turning Insert CPMT080204GP CA515

Cecha szcz.:

RE (GTC – Corner radius): 0.4 mm
S (GTC – Insert thickness): 2.38 mm
IFS (GTC – Insert mounting style code): 3
Corner radius (RE): 4
IC (GTC – Inscribed circle diameter): 7.94 mm
L (GTC – Cutting edge length): 8.062 mm
AN (GTC – Clearance angle major): 11 Degree
EPSR (GTC – Insert included angle): 80 Degree
Size: 802
Grade: CA515
Description: CPMT
COATING (GTC – Coating): CVD Coated Carbide
Chip breaker: GP
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
