Carbide Turning Insert – CNMG160612PH CA4505 Oferta czasowa

Opis

Opis:

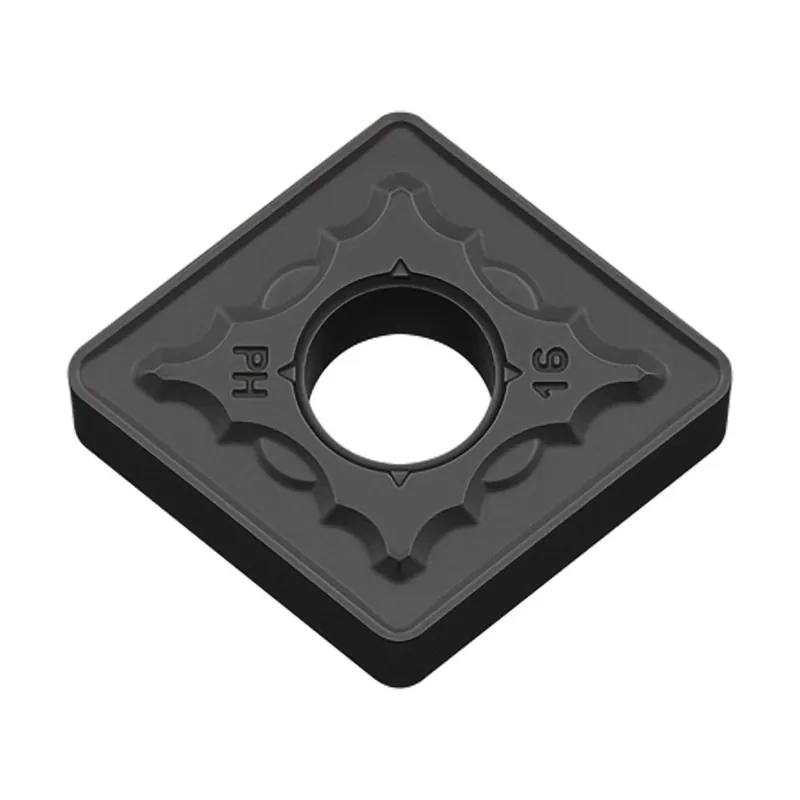

Carbide Turning Insert CNMG160612PH CA4505

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 1.2 mm
IFS (GTC – Insert mounting style code): 2
S (GTC – Insert thickness): 6.35 mm
Corner radius (RE): 12
IC (GTC – Inscribed circle diameter): 15.875 mm
L (GTC – Cutting edge length): 16.12 mm
EPSR (GTC – Insert included angle): 80 Degree
Size: 1606
Grade: CA4505
Description: CNMG
COATING (GTC – Coating): CVD Coated Carbide
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
Chip breaker: PH
